Hologram Recombination Machine (30 tons) Print
Model No: HO-HRM-30

Hologram recombination machines are used to transfer the image from the Nickel shim (master) to special plastics namely polycarbonate sheets. The transfer quality on the plastic is highly dependent on the temperature, pressure and machine used. A bigger master can be made from smaller master using this machine.

This recombination machine can be used with narrow and wide web and with dot-matrix masters.

The maximum hologram master size is 50 mm x 50 mm.

The maximum tonnage is up to 30 Tons.

We have provided motorized travel in X & Y directions for the polycarbonate sheet holder. Maximum travel is up to 1 meter x 1 meter.

The unique design of the press ensures no movement of the shim during continuous operation.

The equipment can be controlled by PC using a user friendly software and also by an inbuilt Front Panel Controller. The shim can be heated for up to 150 Degree Celsius before stamping.

N2 nozzle is incorporated with the machine to clean the recombination plates / area.


    Recombining Area : 1000mm x 1000mm
    Plastic Sheet Area : 1100mm x 1100mm
    Maximum Image Size : 50mm x 50mm
    Working Pressure
    (Hydro-pneumatic Cylinder)
: 30 tons
    X - Y Stage travel : 1000mm x 1000mm
    Controller : PC and Manual- Front Panel Controller
    Resolution : 10 microns
    Heater : Electrical heater controlled by microcontroller
based temperature controller with digital display.
    Maximum Temperature : 150°C
    Power Supply Required : 230 V AC, 50 Hz, Single Phase
    Construction : Solid Steel construction
Downloads

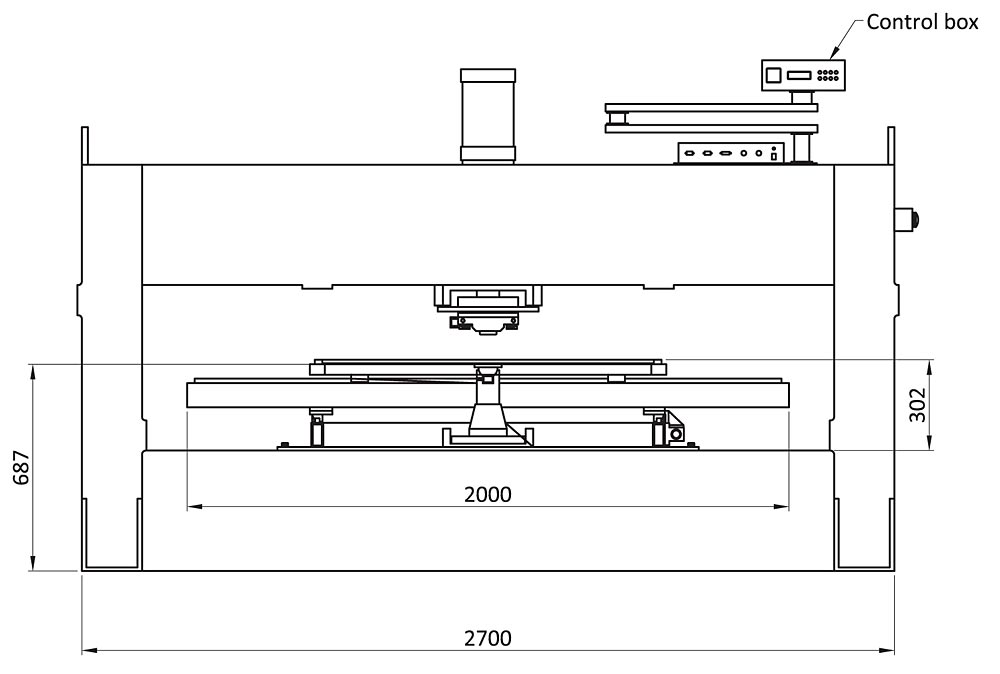

Drawing
