Multi Axis Stage (Linear & Rotary Configuration) Print
Most of the linear and rotary stages manufactured by Holmarc are modular in design that these can be assembled with suitable angle brackets and adapter plates to obtain multi-axes stages. Three of the linear and rotary combination stages are described in this section.
XYZ Theta Stage Model : HO-MXYZR-500
In this model, theta stage is fixed to carriage of the Z stage with an bracket so that top surface of the theta stage is horizontal. As shown in the photograph, one side of the theta stage is obstructed by Z axis. All linear stages are given bellows protection.
Travel X : 500 mm
Travel Y : 500 mm
Travel Z : 500 mm
Rotation : 360° Continuous rotation
Load Capacity : 25 kg
Construction : Aluminium alloy B51S

XY Theta Stage Model : HO-MXYR-300
As evident from the photograph, theta stage is placed on top of X-Y stages. All three axes are motorized, still hand knobs are given behind each motor for manual adjustments if required. X and Y stages have bellows protection. Top surface of theta stage is provided with tapped holes for mounting.
Travel X : 300 mm
Travel Y : 300 mm
Rotation : 360° Continuous rotation
Load Capacity : 250 kg
Construction : Aluminium alloy B51S
Finish : Black anodized

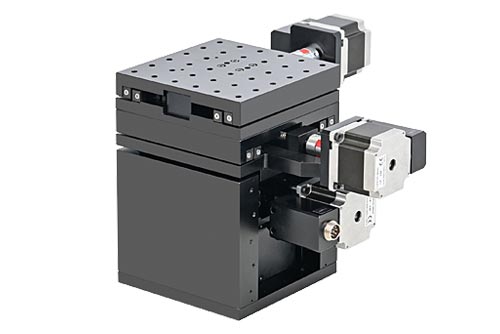

XYZ Theta Stage Model : HO-MXYZR-100
In this configuration, theta stage is fixed on top of Z stage with the help of an L bracket. This configuration helps to mount components on top of the theta stage without obstructions from any sides. All four axes are motorized with stepper.
Travel X : 50 mm
Travel Y : 50 mm
Travel Z : 50 mm
Rotation : 360° Continuous rotation
Top Disc Diameter : 150 mm
Load Capacity : 25 kg
Construction : Aluminium alloy B51S
Finish : Black anodized

XYZ Stage Model : HO-MXYZ-100
In this design, a long travel Z stage is fixed on top of 250mm travel XY stage. 200 x 200mm area angle bracket is placed on the Z stage for mounting components. All three axes are motorized with stepper.
Travel X : 250 mm
Travel Y : 250 mm
Travel Z : 800 mm
Load Capacity : 25 kg
Construction : Aluminium alloy B51S
Finish : Black anodized
