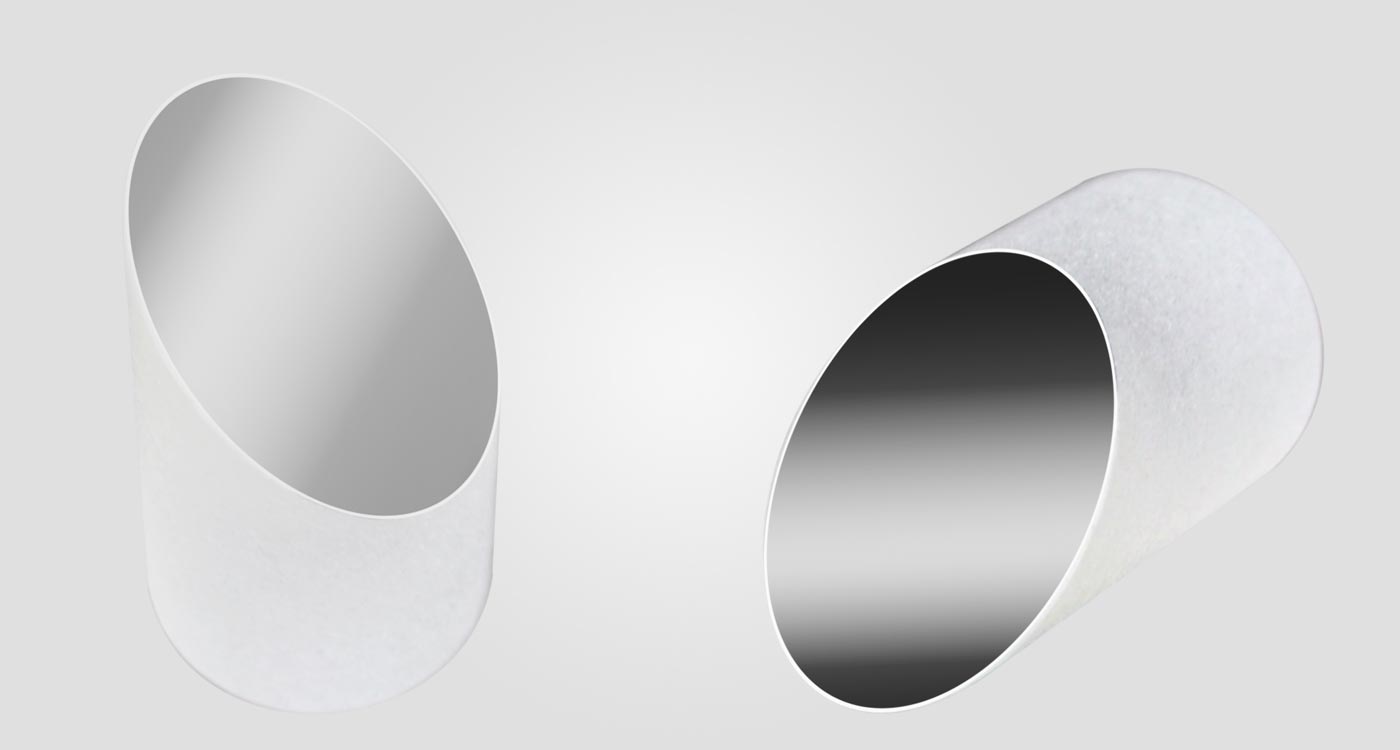

45° Rod Mirrors

Bend laser or image path by 90°
Protected Aluminium on elliptical surface

Holmarc’s 45° Rod mirrors are made from BK7 or equivalent material and are used to bend laser or image path by 90°. Custom mirrors are available on special request. The elliptical surface of the rod mirrors are coated with protected aluminium.



    Material :     BK7 or equivalent
    Clear aperture :     90 %
    Dimensional Tolerance :     +0.00, -0.2 nm
    Length Tolerance :     ± 0.1 mm
    Angle Tolerance :     ± 10 arcmin
    Surface quality :     40 - 20 ( scratch - dig )
    Coating :     Protected aluminum on elliptical surface
    Bevel :     0.2 mm x 45°

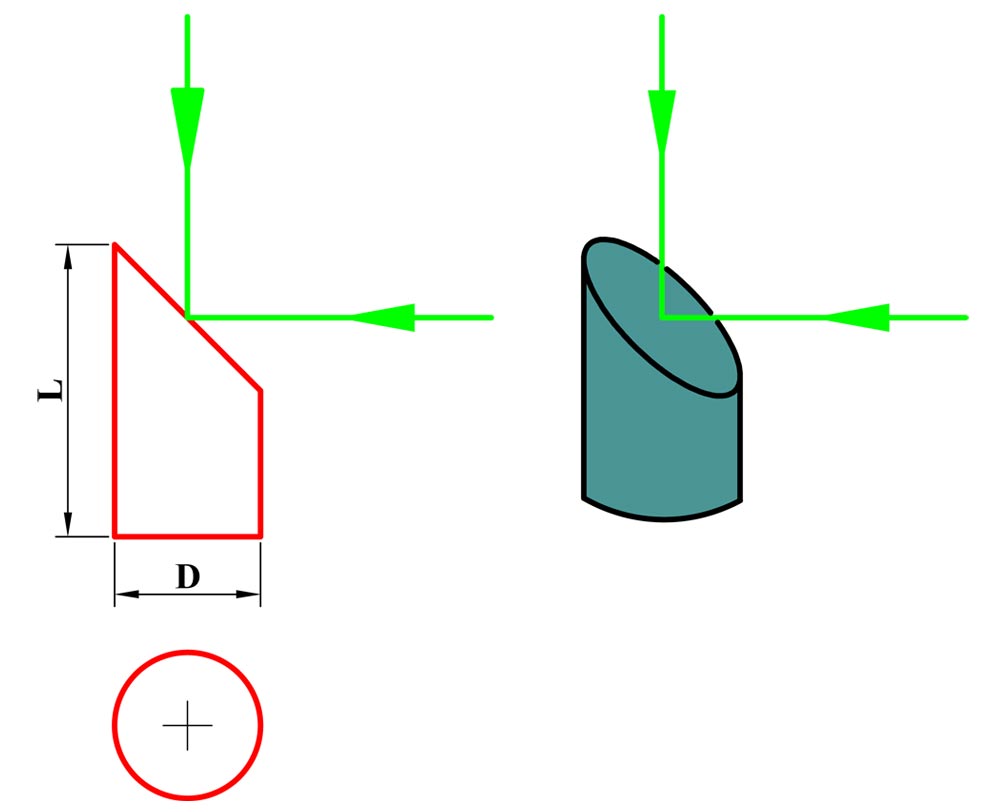

Model No. Diameter D ( mm ) Length L ( mm ) Price ($)
HO-RM45-03 3 6 62.50
HO-RM45-04 4 8 72.50
HO-RM45-05 5 10 75.00
HO-RM45-06 6 12 77.50
HO-RM45-08 8 16 80.00
HO-RM45-10 10 20 82.50
HO-RM45-12 12 24 92.50
HO-RM45-15 15 30 97.50



45° Rod Mirrors Ø15

Model No. HO - RM45 - 15
$ 58.00
