XY Moving Platform

MXYTSW Series
Stepper Motor Driven
Crossed roller based linear guides

MXYTSW Series stages are provided with a rectangular through hole at the center. This holes can either be used as access hole for keeping other instruments or for illuminating objects from underneath. Drive lead screw along with motor is mounted by the side of the stage. One end of the lead screw is attached to a rotary knob for manual adjustments, whenever required. Limit switches are fixed at both extremes for home and far end location.

Crossed roller based linear guides are used for achieving precision linear motion. The guide ways are factory pre-loaded to eliminate play and wobble. Coefficient of friction is less than 0.003. Standard stages are constructed in aluminium alloy with black anodized finish. Controller sold separately.


    Straight line accuracy :     0.010 mm
    Repeatability :     0.002 mm
    Drive :     Precision lead screw
    Mounting holes :     M6 mounting holes
    Finish :     Black anodized
    Stepper Motor Driven
        Profile projector
        Measuring microscope
        Inspection microscope
        Dispensing unit
        Automated pipetting system

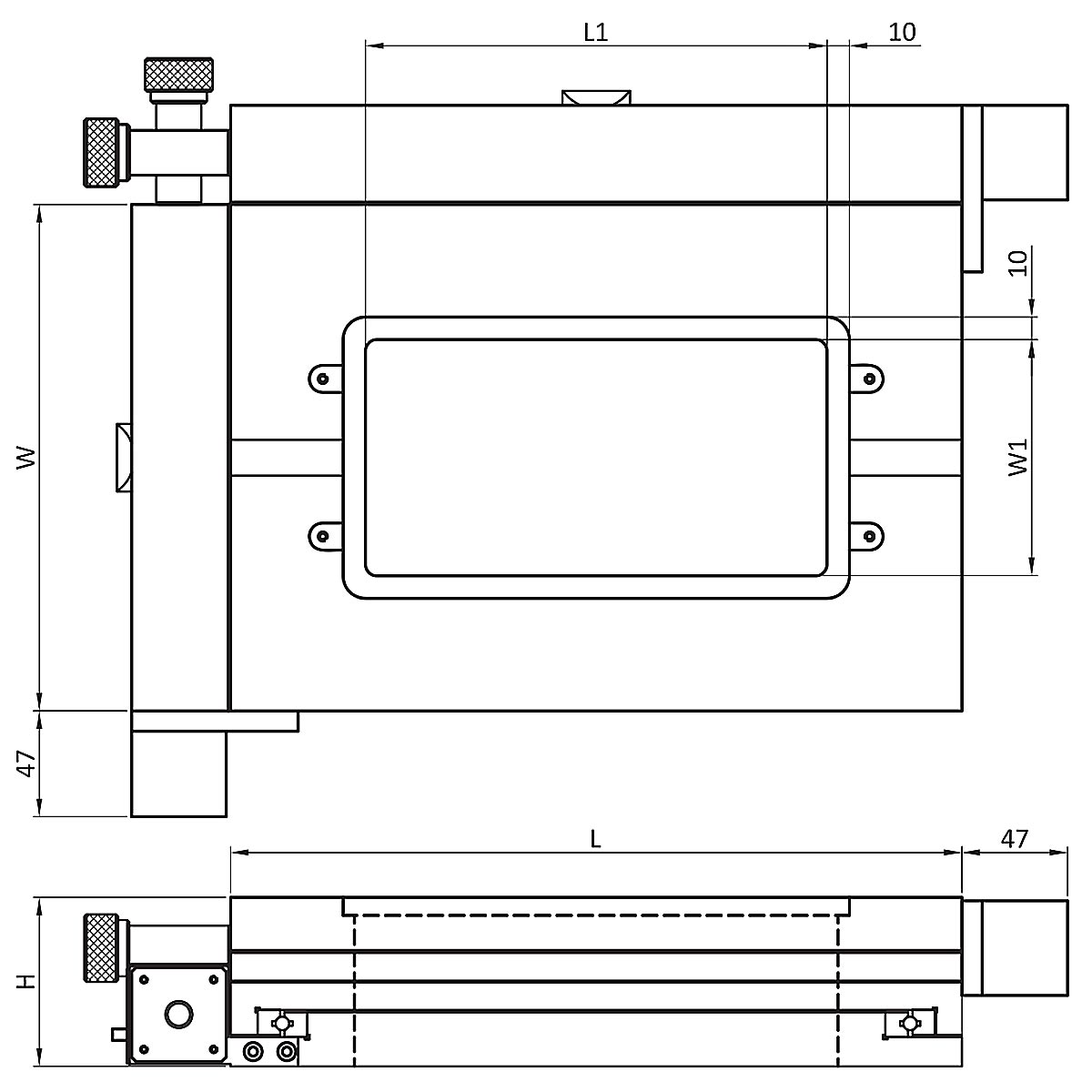

Model No. Carriage Size Aperture Size Travel
X & Y
H L W L1 W1 Drawing Price ( $ )
MXYTSW175175 175 x 175 75 x 75 50, 50 65 175 175 75 75 724.00
MXYTSW225175 225 x 175   100, 50   225 175       -
MXYTSW225225 225 x 225 125 x 125 100, 100 65 225 225 125 125   882.00
MXYTSW325225 325 x 225 225 x 125 200, 100 75 325 225 225 125   993.00
MXYTSW325295 325 x 295 225 x 195 200, 170 75 325 225 195 175   1001.00
MXYTSW425295 425 x 295 325 x 195 300, 170 75 425 225 195 175   -
All dimensions are in “mm”

One of the application of MXYTSW Series motorized stage is automated pipetting system in which sample tray is connected to the motorized stage. These XY stages are fitted with a drive mechanism that provides controlled, precise positioning along X and Y axis. Pre programmed position control unit allows accurate positioning of sample compartment below the pipetting system.




Glass plates are available for XYTSW series XY translation stages
Glass Plate Model No. Size Compatible Stage
Gl7575 95 x 95 XYTSW175175
Gl125125 145 x 145 XYTSW225225
Gl225125 245 x 145 XYTSW325225
Gl225195 245 x 215 XYTSW325295
Gl325195 345 x 215 XYTSW425295
