Rotation Stage with through

hole at the center

RSC Series Rotation Stages
Aperture platform
Engraved Scale for Accurate Adjustments

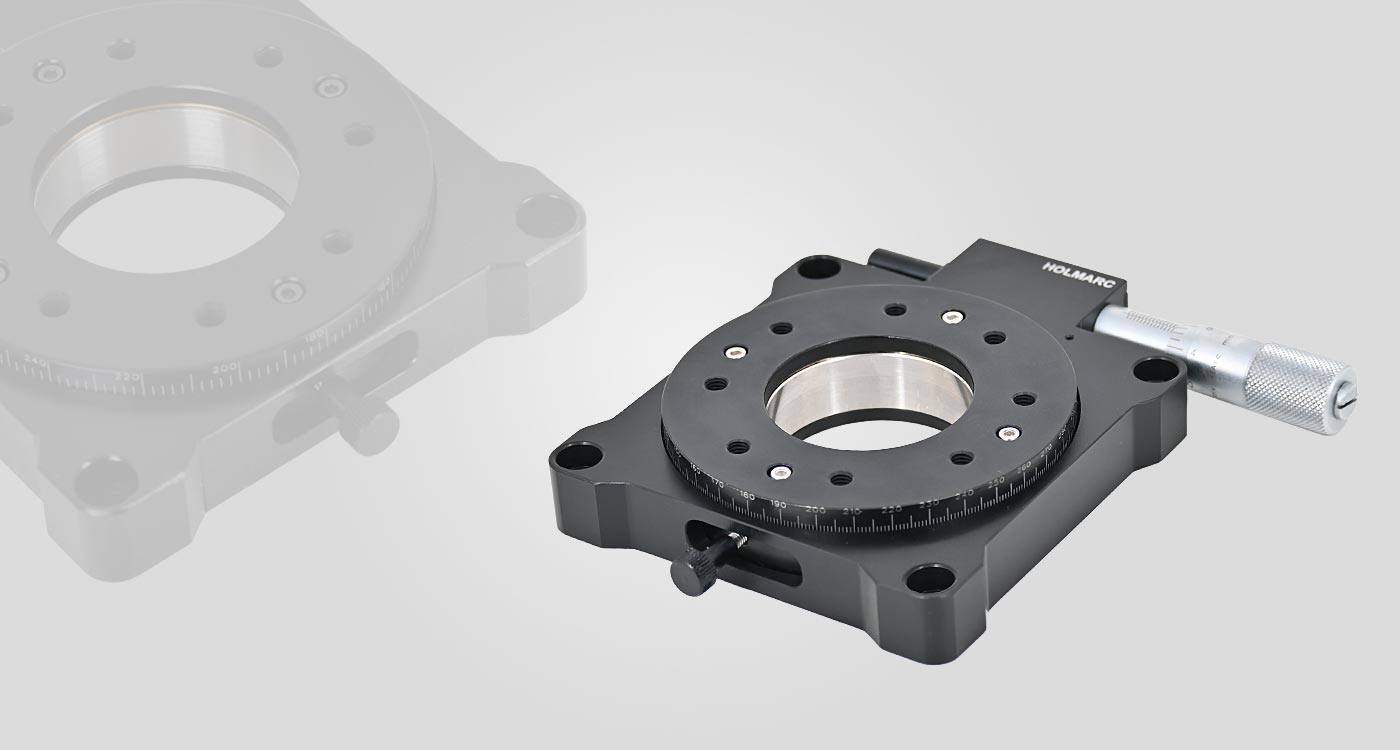

This RSC Series precision rotary stage allows unlimited coarse movement and limited +/- 4 degree azimuth at resolutions of 0.1 degree. It is suitable for horizontal and vertical rotary axes. Preloaded rolling contact bearings are used to minimize friction and to eliminate play. M6 clearance holes are provided at four corners to mount the stage directly to breadboards. For mounting to linear stages and other systems, adapter plates with sufficient M6 tapped holes and C’bored holes can be used. The stage is constructed out of aluminium alloy with black anodized finish.

Through-hole or M16x1 threaded hole in the center allows the stage to be used in an imaging application that requires illumination from underneath the sample. Holmarc provides custom mounting pattern as well possible for easy integration with other devices.


    Readout :     0.1°
    Construction :     Aluminium Alloy B51S / Stainless Steel
    Finish :     Black anodized ( Al) / Ground finish ( SS )
    Tapped holes on top disc :     M4 / M6 tapped holes
    Mounting holes on the base :     M4 / M6 CBR
    Design :     Modular
    Coarse travel :     360°
    Fine travel :     ± 4°
    Bore Type :     M16 x 1 thread or 25 - 100 mm through Bore
    Top Disc Sizes :     50 mm - 150 mm Dia.
    Load Capacity :     25 kg vertical
    Drive :     Micrometer







RS Series Rotation Stages

This RS Series precision rotary stage allows unlimited coarse movement and a limited +/- 4 degree azimuth at resolutions of 0.1 degree.





Model No. Load Capacity Bore Type Drawing Price ( $ )
Material : Aluminum Kg
RSC-50 2 Dia - 25 mm -
RSC-50T 2 M16 x 1 thread -
RSC-75 5 Dia - 30 mm -
RSC-75T 5 M16 x 1 thread -
RSC-100 8 Dia - 50 mm -
RSC-125 25 Dia - 75 mm -
RSC-150 25 Dia - 100 mm -
Model No. Load Capacity Bore Type Drawing Price ( $ )
Material : Stainless Steel Kg
SS-RSC-50 2 Dia - 25 mm -
SS-RSC-50T 2 M16 x 1 thread -
SS-RSC-75 5 Dia - 30 mm -
SS-RSC-75T 5 M16 x 1 thread -
SS-RSC-100 8 Dia - 50 mm -
SS-RSC-125 25 Dia - 75 mm -
SS-RSC-150 25 Dia - 100 mm -



Rotation Stage RSC100

Model No. RSC – 100 M
$ 119.45
Rotation Stage HDRSC125

Model No. HDRSC125
$ 221.79
