Syringe Pump / Infusion Pump

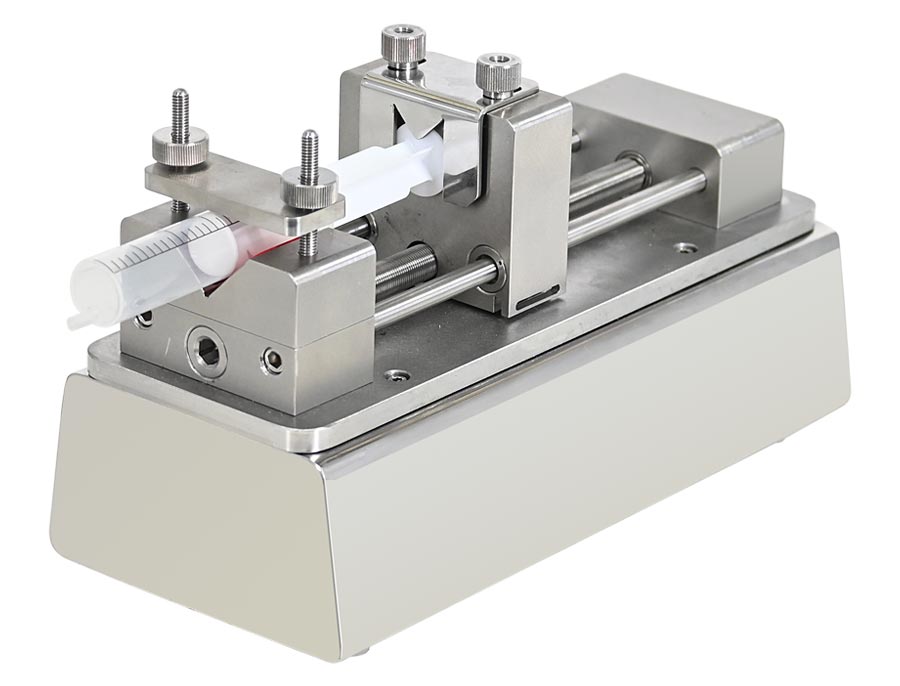

Syringe Pump

SPLF Series

Silent and smooth operation
Operates in stand alone or through a PC

A syringe pump is a device which can either infuse or withdraw liquid samples / fluids, at user defined flow rates and with selectable target volumes. Syringe pumps with simultaneous infusion and withdrawal with opposing syringes on a single drive, are also available.

Syringe pumps are widely used in medical field as well as in laboratory and research fields.

Applications of syringe pumps includes electro spinning, electro spraying, micro dialysis, dispensing / dilution, organ / tissue perfusion and fluid circulation.

Syringe pumps are also useful in microfluidic applications, such as micro reactor design and testing, and in chemistry for slow incorporation of a fixed volume of fluid into a solution.

Holmarc's SPLF series syringe pumps are versatile products ideal for precise dispensing of fluids in laboratory experiments, available at an economical price. Our bench-top Syringe Pump has been designed for safe and ultra-smooth fluid flow for lab applications and can be easily set up inside a standard fume cupboard. Holmarc manufactures syringe pumps in various models for single syringes, two syringes, four syringes and ten syringes.

These pumps can operate with standard off the shelf syringes in plastic, glass and stainless steel. The dispensing rates / flow rates possible with this device are very wide in range and can vary from 15.63μl/hr to 36.2ml/min, depending on the size of syringe used. The unit has built in electronics with keyboard and display for programming the operational attributes to work in standalone mode. This series of pump shows all the pertinent, real-time information on the LCD display. The Information displayed includes flow rate and total time remaining.

Computer interfacing is also possible whenever required with RS 232C serial integrated into the control electronics of the system. This model supports dispensing as well as withdrawal. Powerful drive motors and innovative design have been combined with software control to deliver ultra-smooth and steady flow rates. Apart from all these, this device can be customized as per requirement.

More +

This model can accept two different size syringes which varies from 5 ml to 60 ml. Any type of syringes can be used in the unit including glass, plastic or stainless steel. This pump is ideal for more complex multi-step reactions and has multi-mode operation including infusion only or withdrawal only. A piston holder is provided in order to bring the piston back to home position. In our dual syringe model no: SPLF 2D, two syringes can operate independently with different flow parameters. This device can store up to 5 programs which can be reviewed or changed during operation. The front panel display allows the user to see all of the pump’s operating parameters to ensure proper operation during the experiments. Syringe size and flow rate are easily displayed, as well as the time remaining.

In SPLF-H series pumps, temperature control of the syringe is possible. A glass syringe equipped with heating coil is provided along with this device. The temperature of the solution in the syringe is controllable up to 60°C from ambient. This heating option is available in various models with single syringe, two syringes, four syringes and ten syringes.

Syringe	Standard off the shelf syringes, 5ml to 60 ml, any manufacturer
Flow rate range	* 15.63 μl / hr to 36.2 ml / min
	* Actual volume may vary depends on syringe size & manufacturer
Temperature control	60°C (in selected models)

Price :

# High Pressure Syringe Pump

Model: HO-SPLF-1-P60

Syringe pump which can support 60 bar back pressure

Independently Controlled High Pressure Four Channel Syringe Pump With Continuous Flow

Model No: HO-SPLF-4D-P60-C

This model can work with high back pressures up to 60 bar. It has four independent channels which can be operated simultaneously or sequentially at different flow rates. It also comes with two dual pump tubing kits which facilitates continuous flow of two different liquids from two reservoirs at different flow rates..

Specifications
Video

Number of Syringe Holders	4 (All the four syringes can be operated at the same time at different flow rates)
Maximum back pressure	60 bar
Tubing kit for continuous flow mode (Not suitable for corrosive liquids)
Sequential flow mode
Syringe size	20 ml & 60 ml
Drive mechanism	Microprocessor controlled stepper motor 1/16 microstepping, driving a leadscrew
Pusher advance per microstep (1/16 step)	0.3125 micron
Volume per microstep (1/16) with 20ml syringe	0.089 µl
Max stepping rate	10000 step / sec
Min step rate	1 step / 6 secs
Linear Travel Rate - Min.	0.1875 mm / hr
Linear Travel Rate - Max.	18 cm / min
Flowrate range	55 µl/hr to 37 ml/min (20 ml syringe)
Nominal linear force	20 kg
User interface	20 x 4 line LCD with numerical keypad & PC Software
PC interface	RS232 (Serial Port)
Number of programs	5 (Standalone mode)
Number of programs	Unlimited (PC mode)
Controllable parameters
Flow rate	55 µl/hr to 37 ml/min (20 ml syringe)
Syringe Diameter	10mm to 27mm
Duration	1 second to 18 hours
Target Volume	0.1ml to 60ml

Model No	Item	Temperature control ( room temp. )	No: of Syringes	Price
HO-SPLF 1	Single Syringe Pump	-	One
HO-SPLF 1H	Single Syringe Pump with temperature control	60° C	One
HO-SPLF 2	Dual Syringe Pump	-	Two
HO-SPLF 2H	Dual Syringe Pump with temperature control	60° C	Two
HO-SPLF 4	Four Syringe Pump	-	Four
HO-SPLF 4H	Four Syringe Pump with temperature control	60° C	Four
HO-SPLF 10	Ten Syringe Pump	-	Ten
HO-SPLF 10H	Ten Syringe Pump with temperature control	60° C	Ten
HO-SPLF 2D	Independently controlled Dual Syringe Pump	-	Two
HO-SPLF 2DH	Independently controlled Dual Syringe Pump with Temperature control	60° C	Two

Features :

Smooth and continuous mode of operation
Automatic dispensing of small volumes
Better flow performance
Easy to configure
Vibration and noise free working
Choice of unit selection for flow rate & Duration / Target volume
RS-232 interface for computerizing
Constant delivery of fluids

Can accomodate Multi-size syringes
Compatible with glass, plastic and SS syringes
Front panel with keyboard and display for programming
Non-volatile memory of all parameters and programming
Unparalleled ease of use
In Built syringe table
Dispensing accuracy of +/- 1 %

Flow rate will vary depending on the syringe size :

Syringe size	Diameter (mm) *	Minimum	Maximum
5 ml	10.3	15.63 µl / hr	10.6 ml / min
10 ml	14.57	31.27 µl / hr	21.2 ml / min
20 ml	19.05	53.45 µl / hr	36.2 ml / min

* Actual diameter may vary depends on the syringe manufacturer.

Manual Micro Syringe Pump

Model No: HO-MM-SP-01 / HO-MM-SP-02

Manual micro syringe pump is a convenient instrument for controlled dispensing or withdrawal of fluids. It provides economical method for any application requiring injecting / withdrawing a calibrated volume under manual control. It can be employed in applications like chromatography, micro injections etc.

For injecting and withdrawing precise fluid volumes
Compatible with glass, plastic or stainless steel syringes
Micrometer driven mechanism
Delivers precise fluid volumes

Two models are available. One with graduated micrometer having 10micron resolution and the other with digital micrometer having one micron resolution. Digital micrometer provides convenient digital readings in microns. The resolution of the injection volume depends on the syringe used and resolution of micrometer.

Model No. HO-MMSP-01		Price - $ 430.00
Micrometer drive range	:	25 mm
Linear resolution	:	10 μ
Volume Resolution
10 μl syringe	:	0.0018 μl / div
25 μl syringe	:	0.00416 μl / div
50 μl syringe	:	0.012 μl / div
100 μl syringe	:	0.0167 μl / div
250 μl syringe	:	0.0417 μl / div
500 μl syringe	:	0.0833 μl / div

Model No. HO-MMSP-02		Price - $ 463.00
Micrometer drive range	:	25 mm
Linear resolution	:	01 μ
Volume Resolution
10 μl syringe	:	0.0018 μl / div
25 μl syringe	:	0.00416 μl / div
50 μl syringe	:	0.012 μl / div
100 μl syringe	:	0.0167 μl / div
250 μl syringe	:	0.0417 μl / div
500 μl syringe	:	0.0833 μl / div

Electrospinning Syringe Pump

Model No: HO-SPLF-ES2 / HO-SPLF-ES4

Syringe pump provided for Nano fiber electrospinning unit can withstand high voltages. This is possible due to the non conducting material used for its construction. They isolate the syringe pump inner electronic circuits from the high voltage external environment. Nano fiber electrospinning Syringe pump can withstand voltages as high as 30KV.

Model	Item	No: of Syringes
HO-SPLF-ES 1	Single Syringe Pump	One
HO-SPLF-ES 2	Dual Syringe Pump	Two
HO-SPLF-ES 4	Four Syringe Pump	Four
HO-SPLF-ES 10	Ten Syringe Pump	Ten
HO-SPLF-ES 2D	Independently controlled Dual Syringe Pump	Two
HO-SPLF-ES 4D	Independently controlled Dual Syringe Pump	2 Sets

Holmarc's SPLF-ES series syringe pumps are versatile and cost effective products for precise dispensing of fluids in laboratory experiments. The pump can operate with standard off the shelf syringes in plastic, glass and stainless steel. The dispensing rates / flow rates possible with the device are very wide in range and can vary from 2.8 micro-l/hr to 19ml/min.

The unit has built in electronics with keyboard and display for programming the operational attributes to work in standalone mode. Computer interfacing is also possible when ever required with RS 232C serial in tegrated into the control electronics of the system.

Holmarc manufactures syringe pumps in various models for single syringes, two syringes, four syringes and ten syringes as described in the chart below. In our dual syringe model no: SPLF-ES 2D, two syringes can operate independently with different flow parameters.

Syringe pump with height adjustment

This syringe pump comes with a motorized translation stage, for applications where pump has to be moved in a linear axis. The angle bracket provided can be used for mounding the stage vertically on an optical table. The height can be adjusted using the software, in a range of 300 mm. The syringe pump is a single channel model with temperature control. Holmarc can supply other models of syringe pumps also in this configuration.

Single channel syringe pump with height & temperature control
Model	:	HO-SPLF-1VM
Price	:	2,275.00 $
Number of Syringe Holders	:	1 No.
Syringe temperature control range	:	Ambient to 80 Degree Celsius
Syringe size	:	5 ml to 60 ml
Drive mechanism	:	Microprocessor controlled stepper motor 1 / 16 microstepping, driving a lead screw
Pusher advance per micro step	:	0.3125 micron (1/16 step)
Maximum step rate	:	10000 step / sec
Minimum step rate	:	1 step / 6 secs
Linear Travel Rate Min.	:	0.1875 mm / hr
Linear Travel Rate Max.	:	18 cm / min
Nominal linear force	:	20 kg
Illumination Diameter	:	50 mm
User interface	:	PC software
Number of programs	:	Unlimited
Number of steps	:	5
Controllable parameters
Flow rate (10 ml syringe)	:	32 µl / hr to 20 ml / min
Syringe Diameter	:	10 mm to 27 mm
Duration	:	1 second to 18 hours
Target Volume (10 ml syringe)	:	1µl to 10ml
Pump height	:	0 to 300 mm (At 1 mm resolution)

Single channel syringe pump with height & temperature control

Syringe specifications (Quantity - 2 Nos.)
Volume	:	10 ml
Material	:	Glass
Luer tip (Luer slip)
Needle dimensions (2 types of needles are supplied)
a) ID 0.51 mm, OD 0.82 mm - 1 No
b) ID: 1.36 mm, OD: 1.65 mm - 1 No.

# Notes:

1. The syringe pump is directly mounted on to the vertical stage, pointing downwards.
2. The needle is connected directly to the syringe without tubing.
3. The size of the needles may or may not be suitable to produce the droplets of required size.
4. No front panel or LCD interface. Only PC software interface is available.

Motorized vertical stage for mounting the syringe pump
Model	:	RCMTS-125-300
Travel	:	300 mm
Position setting through PC software
Maximum speed	:	16 mm / sec
Positioning accuracy	:	20 micron
Angle bracket for mounting the vertical stage to the base plate
Base plate dimensions	:	500 x 500 mm
Base plate material	:	Aluminium

Motorized Translation Stages

RCMTS-125 series stages are designed to carry heavy loads, yet to move and position precisely. Recirculating type ball bearing linear ways are used as guides. Drive is provided by a combination of ball screw and stepper motor.
