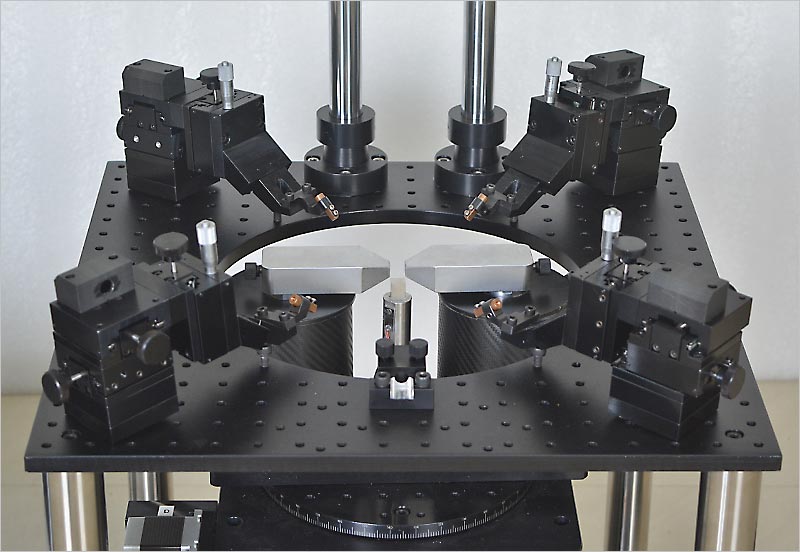

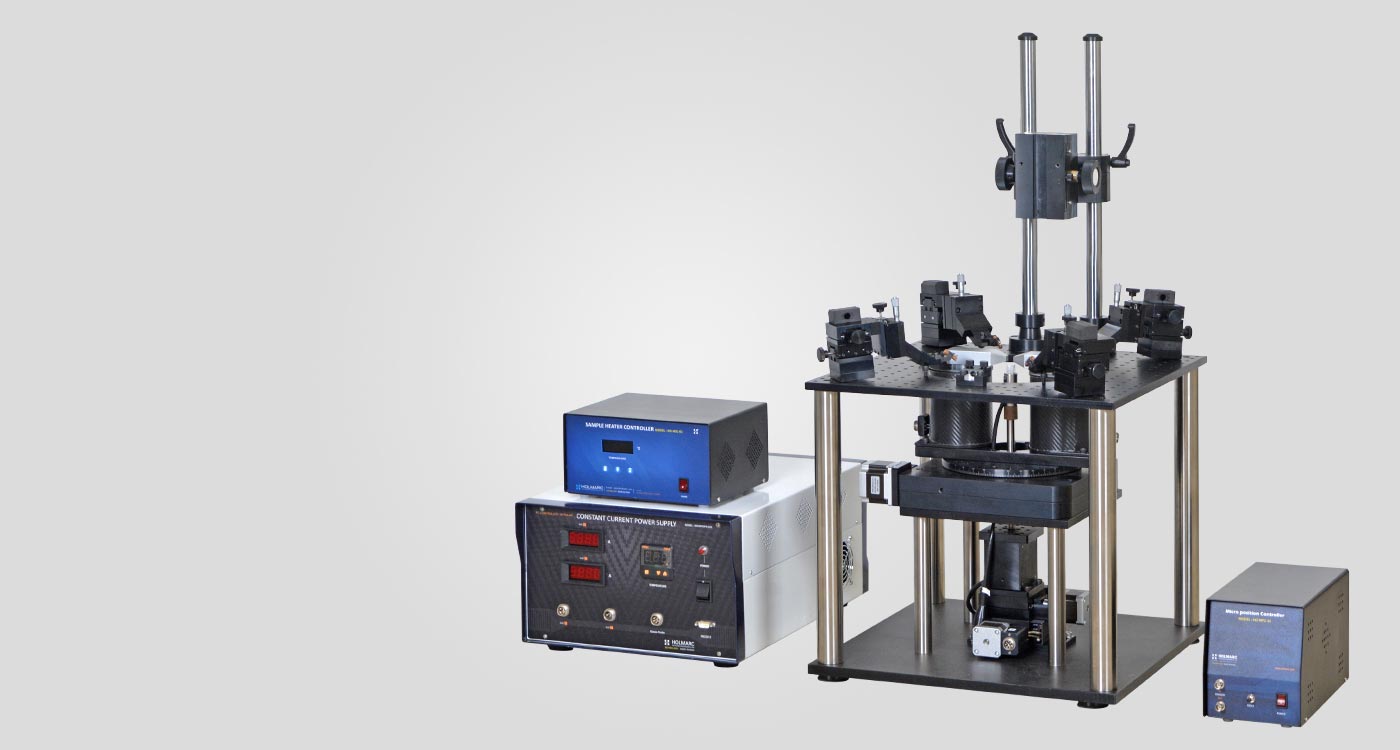

Holmarc’s XYZ Sample Positioning System with rotating electromagnet is a high-precision automated platform designed for advanced magnetic material and device characterization. The system equips researchers with motorized XYZ translation stages, a 360° motorized rotational electromagnet, and optional PC-interfaced sample heating, enabling full control over sample positioning, magnetic field strength, field orientation, and temperature. It also integrates Hall-voltage feedback for precise field sensing, programmable field profiles, and robust mechanical stability for reliable measurements. This versatile setup is ideal for experiments in spintronics, magnetic sensors, semiconductor devices, thin-film characterization, photodetectors, and solar cell research.
| PC-Controlled Electromagnet | |
| Maximum magnetic field | 5000 Gauss @ 10 mm pole gap |
| Field control | Constant current & constant field modes |
| Pole pieces | Removable / replaceable |
| Field sensing | Hall-voltage based |
| Units | Tesla / Gauss / Oersted |
| Measurement range | Auto-range |
| Field stability | ±5 Gauss |
| Resolution | 1 Gauss |
| Low-field capability | 5 Gauss min. |
| Step size | 5 Gauss |
| Power supply | 115–230 V AC, 50/60 Hz |
| Trigger I/O | Yes |
| XYZ Motorized Positioning Unit | |
| Degrees of freedom | 3-axis (X, Y, Z) |
| Stage type | MTS series linear scanning stage |
| Travel range | 25 mm (X, Y, Z) |
| Resolution | 1 µm |
| Repeatability | ±5 µm |
| Accuracy | ±10 µm |
| Load capacity | 5 Kg |
| Motorized Rotation Stage for Electromagnet | |
| Model | MRS-200C |
| Rotation | 360° continuous |
| Positioning accuracy | 0.1° |
| Speed | 8° / sec |
| Drive | Stepper motor |
| Limit switch | Optical home sensor |
| Payload | 8 Kg |
| Structure | Aluminum alloy, Black anodized |
Function : Rotates the electromagnet around the sample for angular-dependent magnetic characterization.
