Nano Fiber Electrospinning Unit

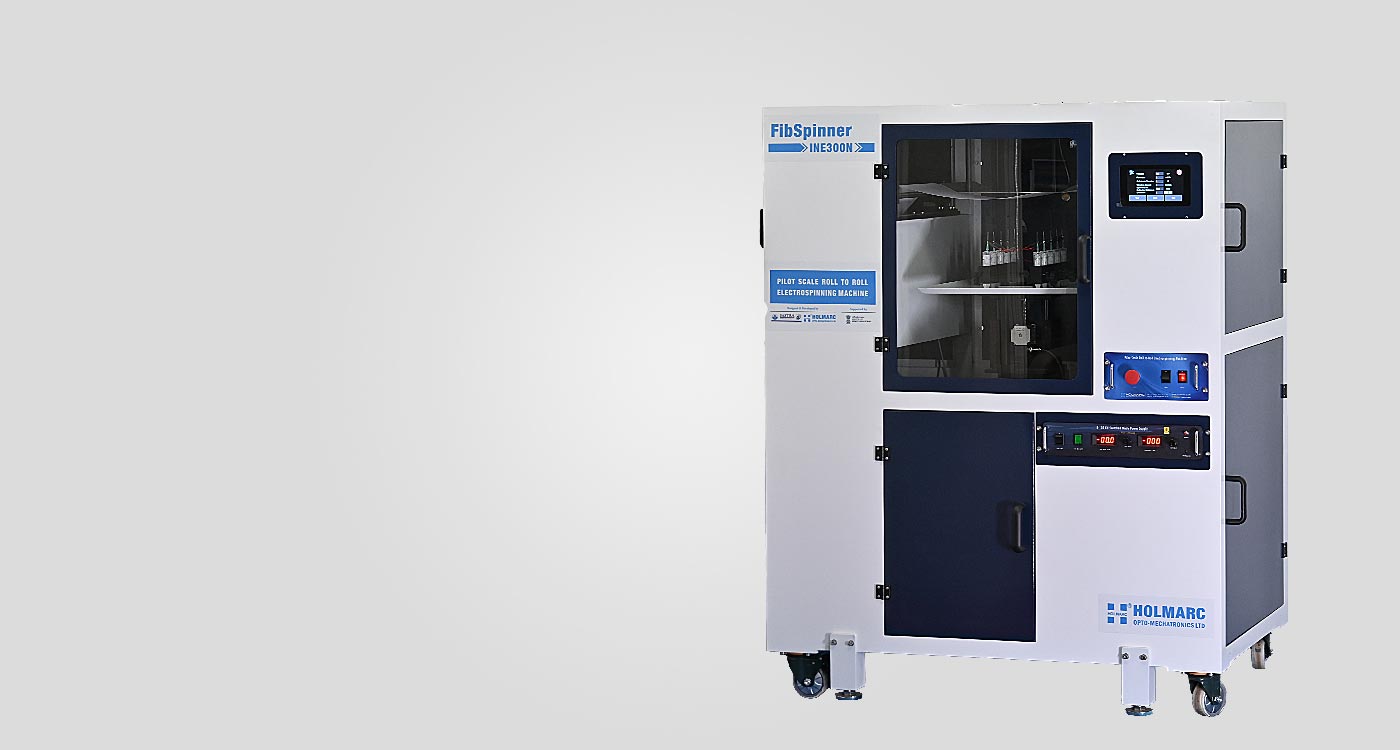

FibSpinner INE300N Roll-to-Roll Nanofiber Electrospinning Machine is a compact, pilot scale system designed for continuous production of uniform nanofiber coatings on flexible substrates. Featuring a bottom-up spinning configuration and a multi-syringe pump system, it enables stable and controlled fiber deposition across widths up to 300 mm.
The integrated roll-to-roll mechanism ensures smooth substrate handling with adjustable winding speeds and precise web tension control, making it suitable for scalable manufacturing. A high-voltage power supply (up to 30 kV) allows fine tuning of fiber formation, while the user-friendly 7” touchscreen interface provides easy control of process parameters, recipe management, and individual motor operations.
Built with safety and reliability in mind, the system includes interlocked high-voltage protection, emergency stop functionality, and electrically insulating epoxy coating. Ideal for research and pilot-scale production, this machine delivers consistent nanofiber fabrication with flexibility and ease of use.
Pump System
| Single Channel Syringe Pump unit | 10 plastic syringes inserted into a holder |
| Tubing | 20 ml Syringe |
| Needle Type | 21G (0.5 mm ID, 38 mm length) Blunt Tip Dispensing Needle |
| Flow Rate | 0.001 - 500 ml/hr |
Roll to Roll System
| Maximum width of the substrate fabric | 300 mm |
| Substrate Winding Speed | 0.1 - 10 m/min |
| Effective Coating Width | 300 mm |
| Max Roll Diameter | 200 mm |
| Web Tension | 1 - 4 N |
User Interface
| 7” Touch Screen Display |
| Easy to use GUI |
| Recipe save and load functions |
| Control of process parameters |
| Individual Motor Control |
High Voltage Power Supply
| Voltage Range | |
| Spinneret | 0 to 30 kV |
| Collector | Grounded |
| Voltage Precision | 0.1 kV |
| Maximum Current | 400 mA |
Safety Function
| HV supply cut off on door open event |
| Emergency stop button |
| Electrically Isolated & Grounded |
| Over Current Protection |
