Breadboards, Tabletops, Rails & Carriages


19" Equipment Racks &
Optical Shelving Systems
19IN Series
Prices are exclusive of taxes and other charges.
Currency

Holmarc's 19-inch Equipment Rack Series is engineered specifically to bridge laboratory electronic instrumentation, laser diode power supplies, motion controllers, and precision optomechanical assemblies. Built with heavy-gauge extruded aluminum vertical uprights and high-tensile steel base plates, these open-frame bays guarantee high structural rigidity, minimal torsional deflection, and effective vibration isolation. Designed in strict accordance with EIA-310 standards, they support both standard chassis and specialized internal optical breadboard shelves.

19" Equipment Rack Selection

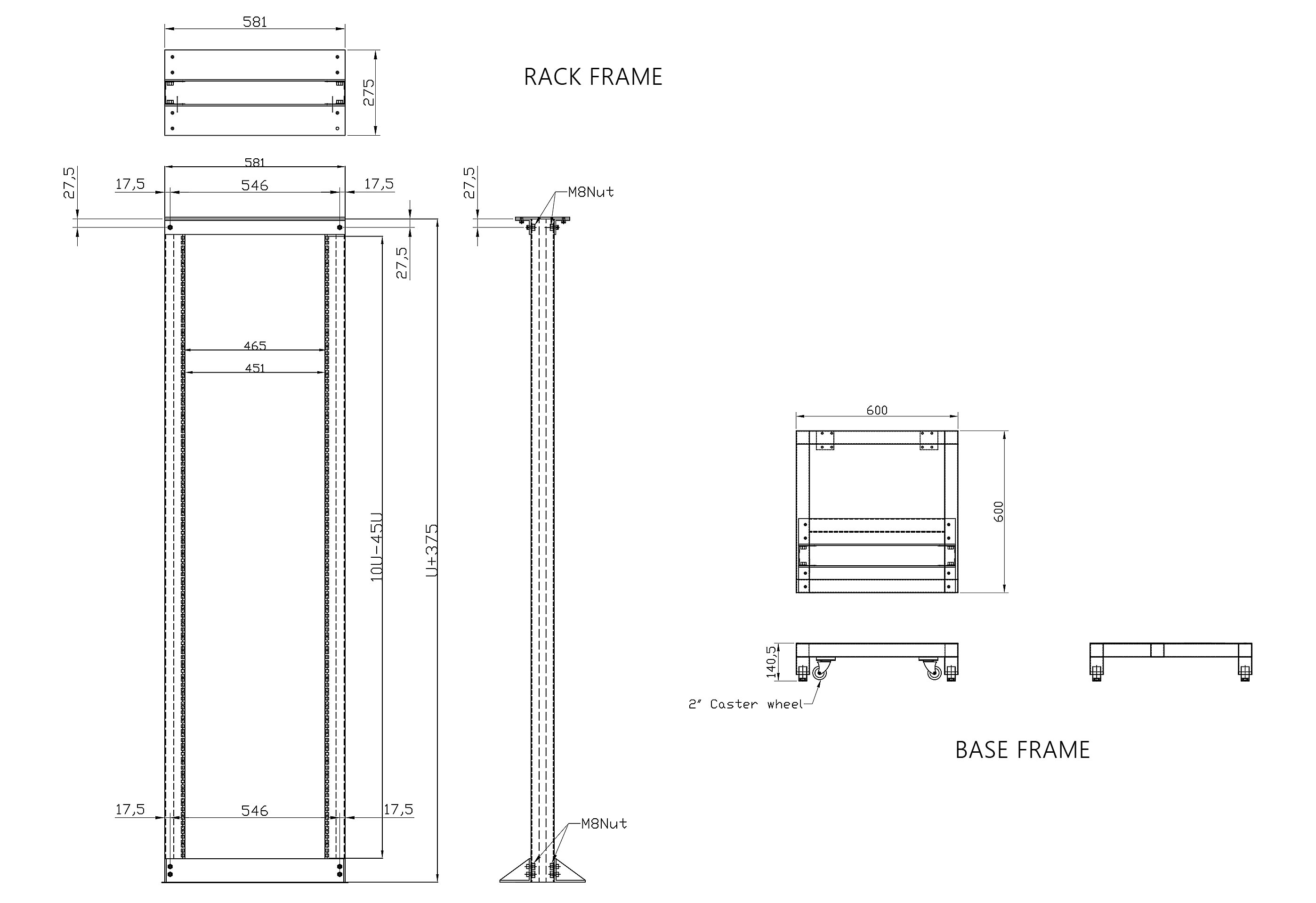

Standard single-column open rack frames supplied complete with 2" caster wheel assembly, vertical extrusion rails, top stabilizer plate, and M8 high-tensile assembly hardware. Configurable from 12U desktop bays to 42U full-height bays.

EIA-310 Standard Precision Rails

Standard 465 mm mounting hole centers and 451 mm clear aperture ensure universal compatibility with 19" lab instruments, controllers, and rack cases.

Integrated Optical Breadboard Shelves

Specialized 2U shelf modules incorporate M6 or 1/4"-20 tapped hole matrices on 25 mm pitch for direct mounting of optics and beamlines.

Heavy-Duty 2" Swivel Casters & Levelers

Smooth-rolling 2-inch swivel caster wheels with leveling support pads (140.5 mm ground clearance) enable effortless mobility and rigid floor locking.

M8 Reinforced Column Rigidity

Dual heavy-wall vertical columns secured with high-tensile M8 bolting and corner gusset braces prevent frame deflection under heavy lab loads.

Model No. Rack Units Mounting Panel H Overall Height (U+375) Columns Price
19IN-12U 12 U 533.4 mm 908.4 mm 1 -
19IN-15U 15 U 666.8 mm 1041.8 mm 1 -
19IN-18U 18 U 800.1 mm 1175.1 mm 1 -
19IN-22U 22 U 977.9 mm 1352.9 mm 1 -
19IN-24U 24 U 1066.8 mm 1441.8 mm 1 -
19IN-27U 27 U 1200.2 mm 1575.2 mm 1 -
19IN-32U 32 U 1422.4 mm 1797.4 mm 1 -
19IN-36U 36 U 1600.2 mm 1975.2 mm 1 -
19IN-42U 42 U 1866.9 mm 2241.9 mm 1 -

Modular Optical Shelves & Laboratory Accessories

Product Model No. Height Features & Functional Utility Price
Caster Wheel base frame RACK-BS-2 140.5 MS painted structure with caster wheel rack frame can be fixed directly for easy lab movement -
Standard Fixed Rack Shelf 2U-DS-D 2U Solid utility shelf designed for non-rackable electronics, multimeters, benchtop supplies, and drivers. -
Optical Breadboard Shelf 2U-DS-DD-E 2U Heavy-duty shelf featuring an integrated M6 or 1/4"-20 tapped hole array on 25 mm pitch for building internal optical beamlines. -
Slide-Out Drawer Shelf (2U) 2U-DS-A 2U Smooth ball-bearing slide drawer for storing test fixtures, optical mounts, laser alignment tools, and patch fibers. -
Slide-Out Drawer Shelf (4U) 2U-DS-C 4U Deep sliding drawer unit providing generous enclosed storage for cables, optical components, safety eyewear, and manuals. -
Hardware Fastener Mounting Kit RACK-HW-KIT - Complete kit containing M6/M8 mounting screws, nylon anti-marring washers, and slide-in cage nuts. -

Key Applications & Custom Engineering Support

    Optomechanical Test Benches : Enclosed breadboard mounting of laser paths and optical components protected from stray light.
    Multi-Axis Motion Control : Compact vertical consolidation of stepper/servo controllers, interface boxes, and power supplies.
    Spectroscopy & Photonics Systems : Secure housing for spectrometers, CCD detection units, and high-stability diode drivers.
    Custom Engineering : Custom column heights (up to 45U), custom depth frames, and joined multi-column bays built to order.
