Gimbal mirror mounts provide 360° coarse positioning in two axes about the mirror surface in addition to fine adjustment of 6°.

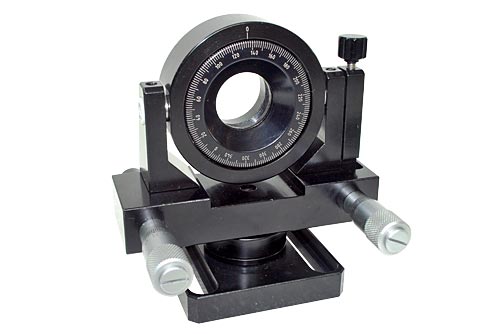

Gimbal mirror mount with rotation provide 360 degree coarse positioning in two axes about the mirror surface in addition to fine adjustment of 6 degrees...
Large Gimbal Mounts are suitable for fixing large optics, with maximum diameter of 200 mm. Fine adjustment is done by a micrometer with least count of 10 microns.
Gimbal mounts with stepper motor drives are suitable for remote positioning of the mirror in pitch and yaw directions.
