Spatial Filter Mounts
SFAS Series
Industrial Grade
Laser Fiber Coupler
Prices are exclusive of taxes and other charges.
Currency

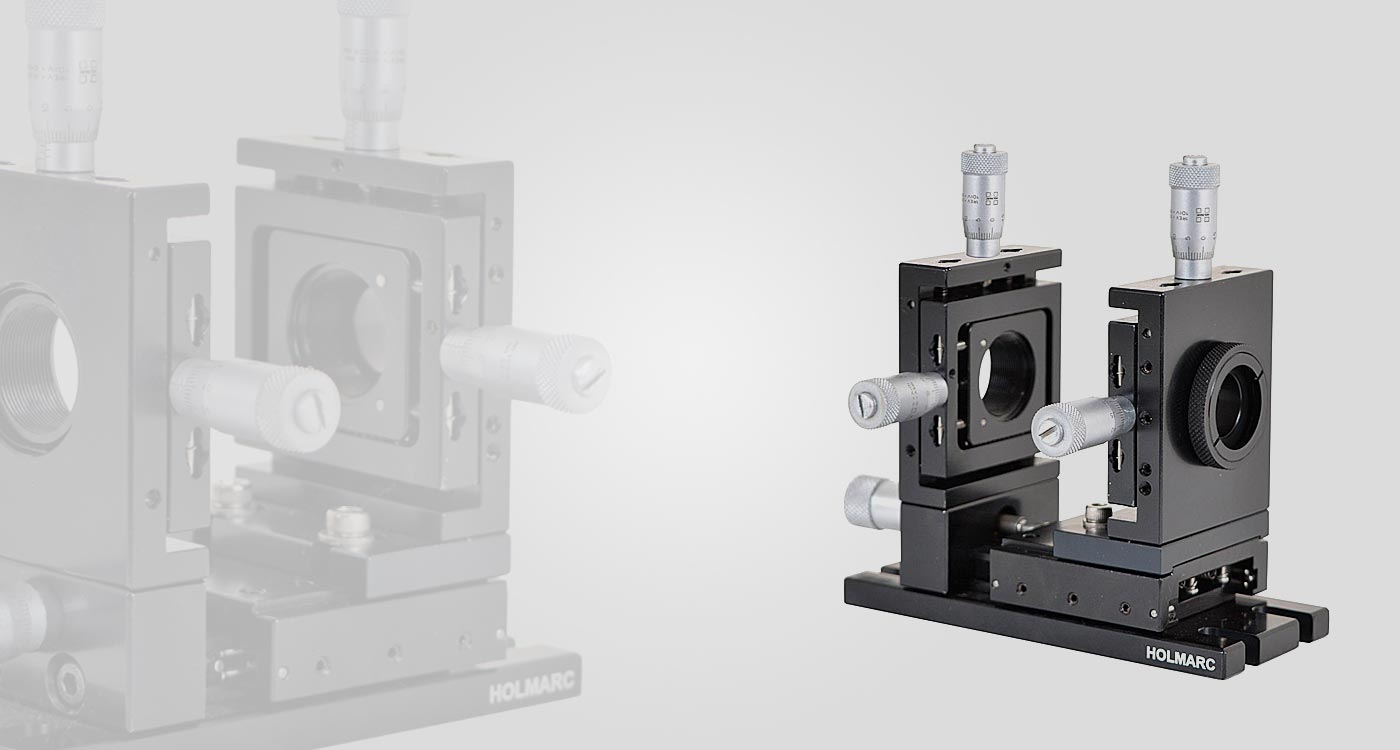

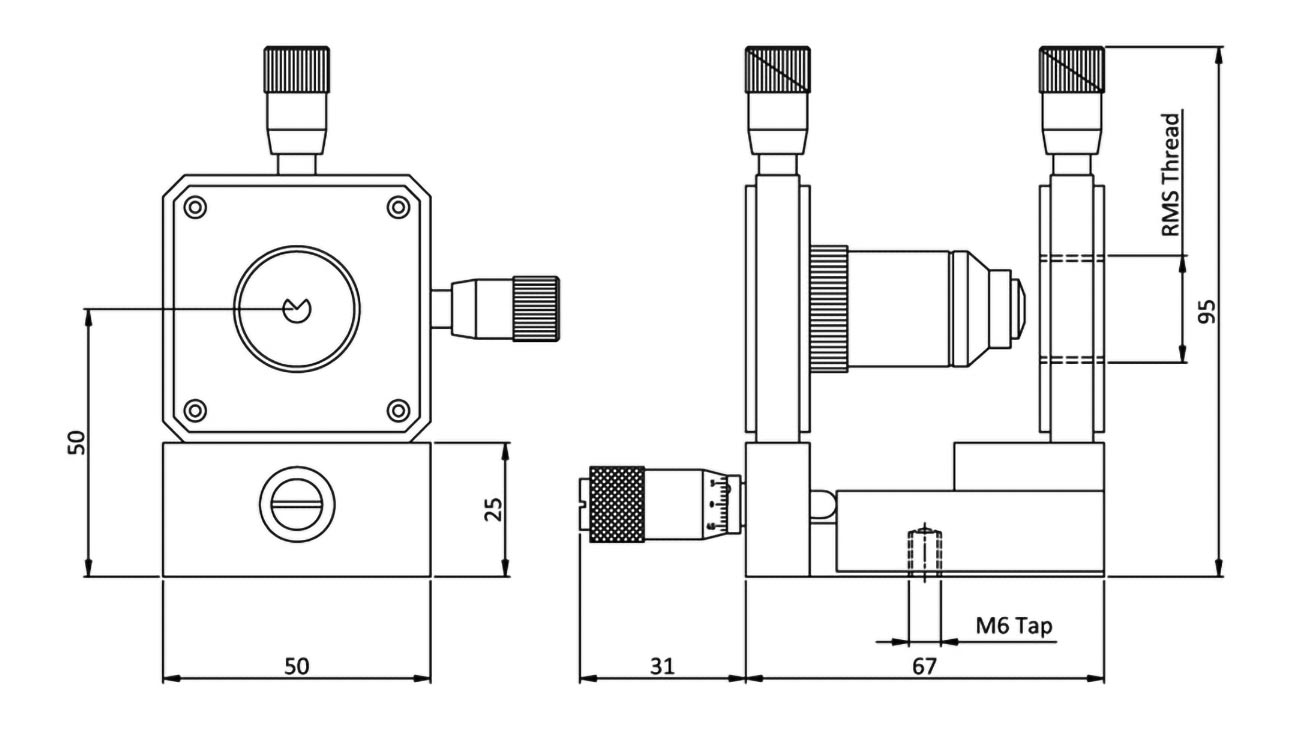

The Holmarc SFAS Series Spatial Filter Mount / Laser Fiber Coupler is an industrial-grade, multi-axis kinematic positioning assembly designed for laser beam spatial mode cleaning, wavefront purification, and precision optical fiber coupling. Integrating independent XY positioning stages for both optical elements and a 10 mm axial (Z) travel drive, the unit effectively strips high-frequency optical noise, diffraction fringes, and scratch-dig scatter to deliver an ideal TEM00 Gaussian profile..

Compatible Accessories & Product Catalog Numbers

Product Category Interface / Compatibility Holmarc Catalog Part Numbers
Microscope Objectives Standard RMS thread; compatible with commercial DIN/JIS objectives MO-4X (4X / 0.10 NA), MO-10X (10X / 0.25 NA), MO-20X (20X / 0.40 NA), MO-40X (40X / 0.65 NA), MO-100X
Mounted Precision Pinholes Standard Ø 25 mm (1.0") outer diameter cells; 20 µm stainless steel foil HPRA-Series: HPRA-3-5 (5 µm), HPRA-3-10 (10 µm), HPRA-3-15 (15 µm), HPRA-3-25 (25 µm), up to HPRA-3-200 (200 µm)
Pinhole Retaining Cell Dedicated Ø 25 mm optical housing cell Model PHC-3 ( Ø25 mm outer diameter replacement / custom pinhole housing cell )
Mounting Accessories M6 optical grid breadboard tables or posts Holmarc PS Series Posts ( Ø12, Ø12.7, Ø16 mm ) & PH Series Pedestal Post Holders

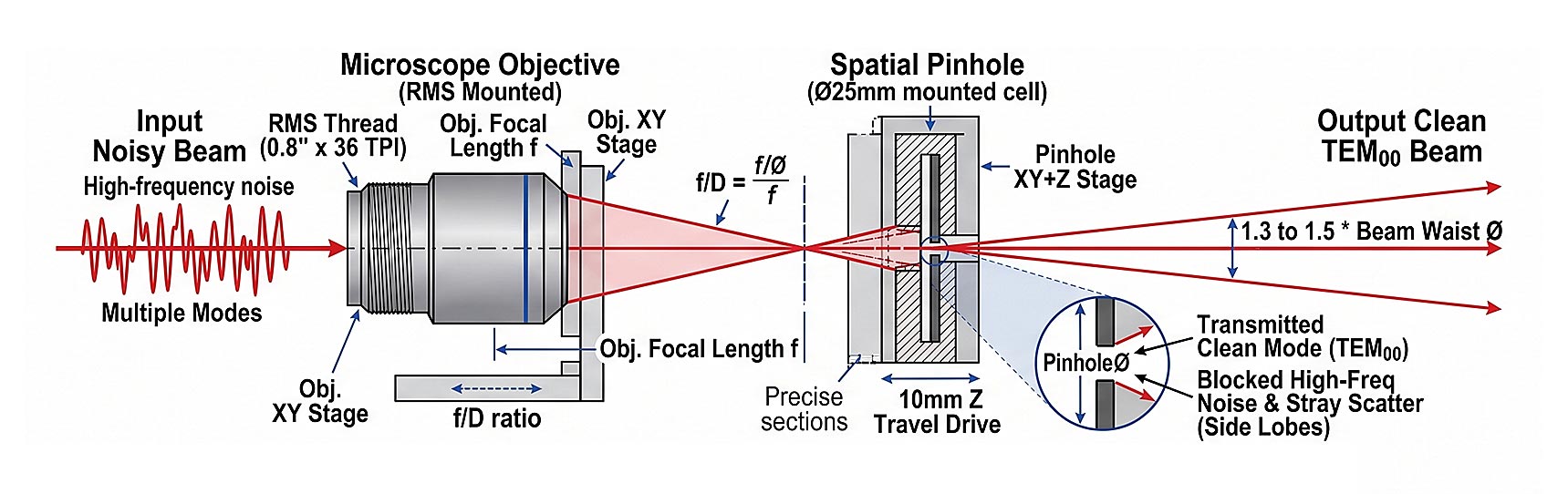

Fig 2 : Optical Ray-Path Schematic Through Holmarc SFAS Spatial Filter Assembly

Laboratory Alignment Sequence

        Step 1 (Centering) : Thread objective without pinhole installed; adjust Objective XY stage until beam is centered on optical axis..
        Step 2 (Pinhole Mount) : Insert Ø 25 mm pinhole cell into retaining barrel and secure with threaded ring.
        Step 3 (Transverse Alignment) : Adjust Pinhole XY stage to center aperture on focused beam waist until transmission emerges.
        Step 4 (Axial Optimization) : Translate the 10 mm Z-drive along optical axis to position pinhole at exact focal waist, maximizing power.

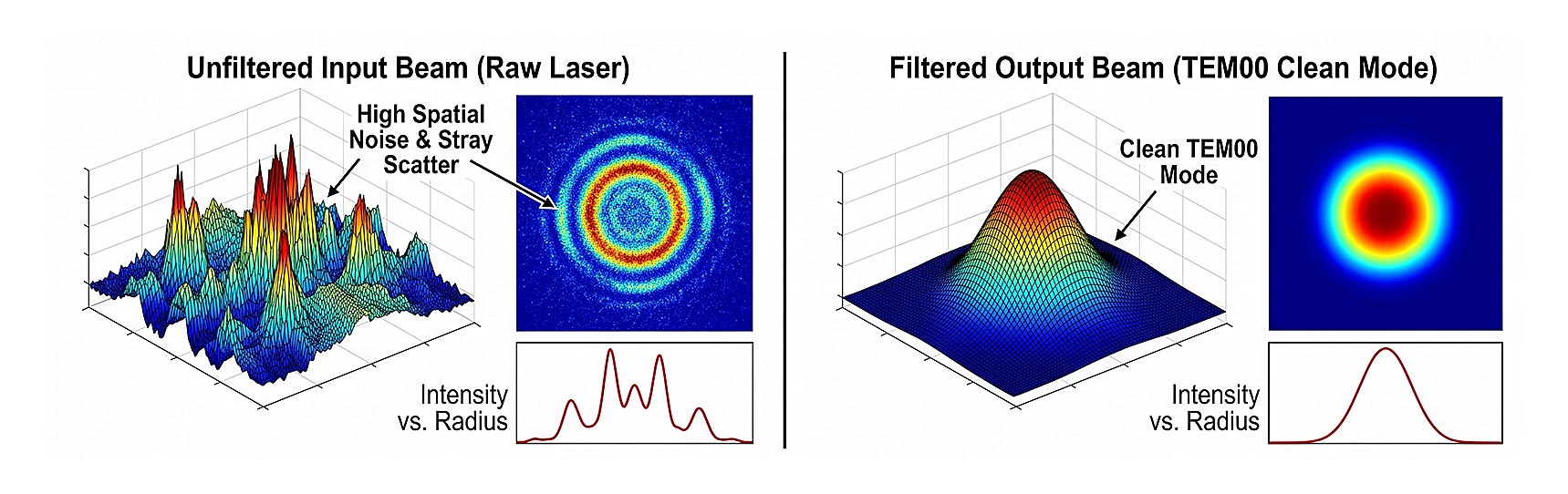

Fig 3 : Transverse Beam Profile Comparison - Unfiltered Input vs. Spatial Filtered Output
