12.7 mm Post System

    Print
P Series Post
Ø12.7 mm
Stainless steel made
Length ranges from 20 to 250mm
   Get Quote










Can't read the image? click here to refresh.


Prices are exclusive of taxes and other charges.

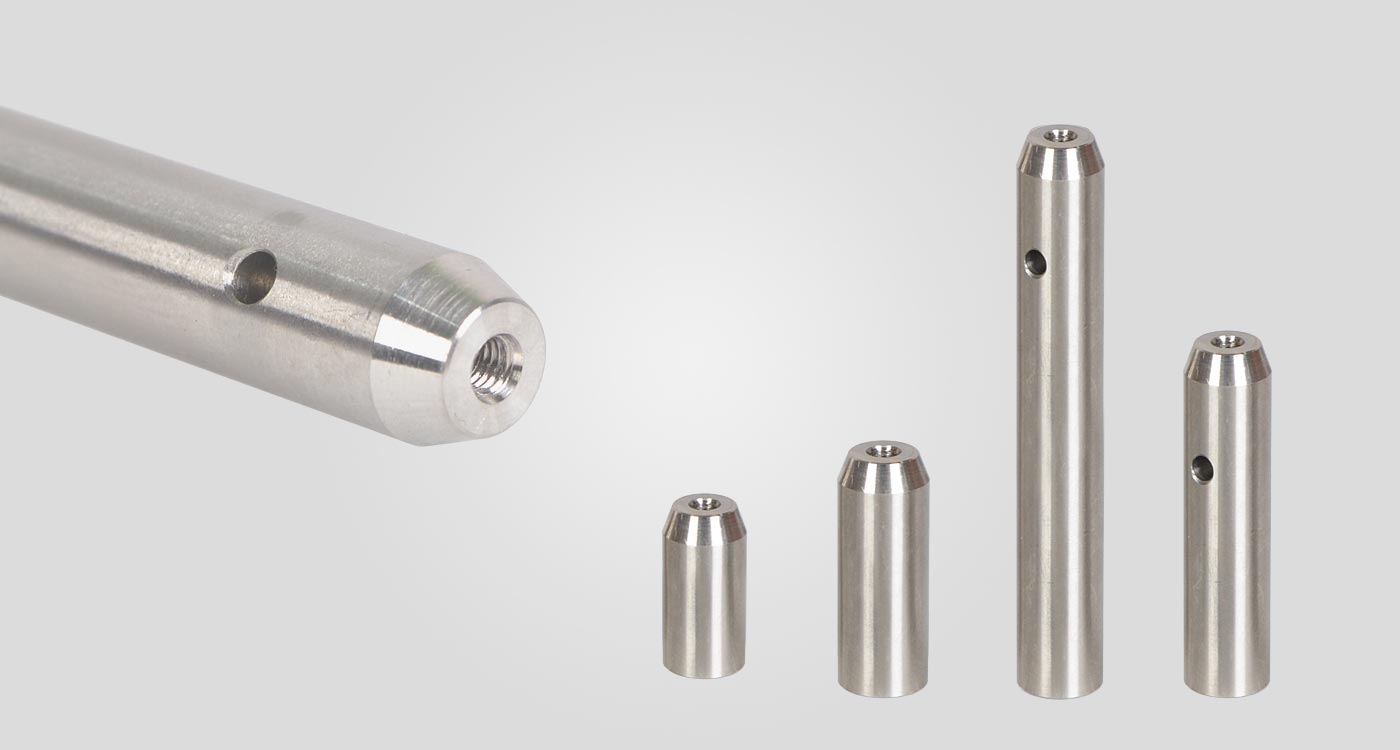

P series stainless steel posts have 12.7mm diameter with precision ground finish. One end of the post is turned suitable for M4 screw and other end is for M6 screw. A 3.6 mm diameter hole is provided on the surface of the post for providing extra torque while tightening components on it. A 3.5 mm allen key or a screwdriver with less than 3.6 mm diameter can be used for tightening. For post holders suitable for 12.7 mm diameter posts refer to PH series post holders.


Check Our Online Store !
www.e-holmarc.com

Order Now !

12.7 mm or 0.5 inch Post with Metric standard mounting holes

Model No Length ( mm ) Price
PN20 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 20 mm
PN25 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 25 mm
PN30 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 30 mm
PN40 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 40 mm
PN50 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 50 mm
PN75 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 75 mm
PN100 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 100 mm
PN125 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 125 mm
PN150 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 150 mm
PN200 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 200 mm
PN250 12.7 mm dia, non magnetic stainelss steel post, M4 tap at one end - M6 tap at other end, length 250 mm

12.7 mm or 0.5 inch Post with Imperial standard mounting holes

Model No Length ( mm ) Price
PNT20 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 20 mm
PNT25 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 25 mm
PNT30 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 30 mm
PNT40 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 40 mm
PNT50 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 50 mm
PNT75 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 75 mm
PNT100 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 100 mm
PNT125 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 125 mm
PNT150 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 150 mm
PNT200 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 200 mm
PNT250 12.7 mm dia, non magnetic stainelss steel post, 8-32 tap at one end & 1/4-20 tap at other end, length 250 mm

12.7 mm or 0.5 inch Aluminium anodised Post with metric standard mounting holes

Model No Length ( mm ) Price
APN30 12.7 mm dia, Aluminium anodised post, M4 tap at one end - M6 tap at other end, length 30 mm
APN40 12.7 mm dia, Aluminium anodised post, M4 tap at one end - M6 tap at other end, length 40 mm
APN50 12.7 mm dia, Aluminium anodised post, M4 tap at one end - M6 tap at other end, length 50 mm
APN75 12.7 mm dia, Aluminium anodised post, M4 tap at one end - M6 tap at other end, length 75 mm
APN100 12.7 mm dia, Aluminium anodised post, M4 tap at one end - M6 tap at other end, length 100 mm
APN125 12.7 mm dia, Aluminium anodised post, M4 tap at one end - M6 tap at other end, length 125 mm
APN150 12.7 mm dia, Aluminium anodised post, M4 tap at one end - M6 tap at other end, length 150 mm

12.7 mm or 0.5 inch Aluminium anodised Post with Imperial standard mounting holes

Model No Length ( mm ) Price
APNT30 12.7 mm dia, Aluminium anodised post, 8-32 tap at one end & 1/4-20 tap at other end, length 30 mm
APNT40 12.7 mm dia, Aluminium anodised post, 8-32 tap at one end & 1/4-20 tap at other end, length 40 mm
APNT50 12.7 mm dia, Aluminium anodised post, 8-32 tap at one end & 1/4-20 tap at other end, length 50 mm
APNT75 12.7 mm dia, Aluminium anodised post, 8-32 tap at one end & 1/4-20 tap at other end, length 75 mm
APNT100 12.7 mm dia, Aluminium anodised post, 8-32 tap at one end & 1/4-20 tap at other end, length 100 mm
APNT125 12.7 mm dia, Aluminium anodised post, 8-32 tap at one end & 1/4-20 tap at other end, length 125 mm
APNT150 12.7 mm dia, Aluminium anodised post, 8-32 tap at one end & 1/4-20 tap at other end, length 150 mm
