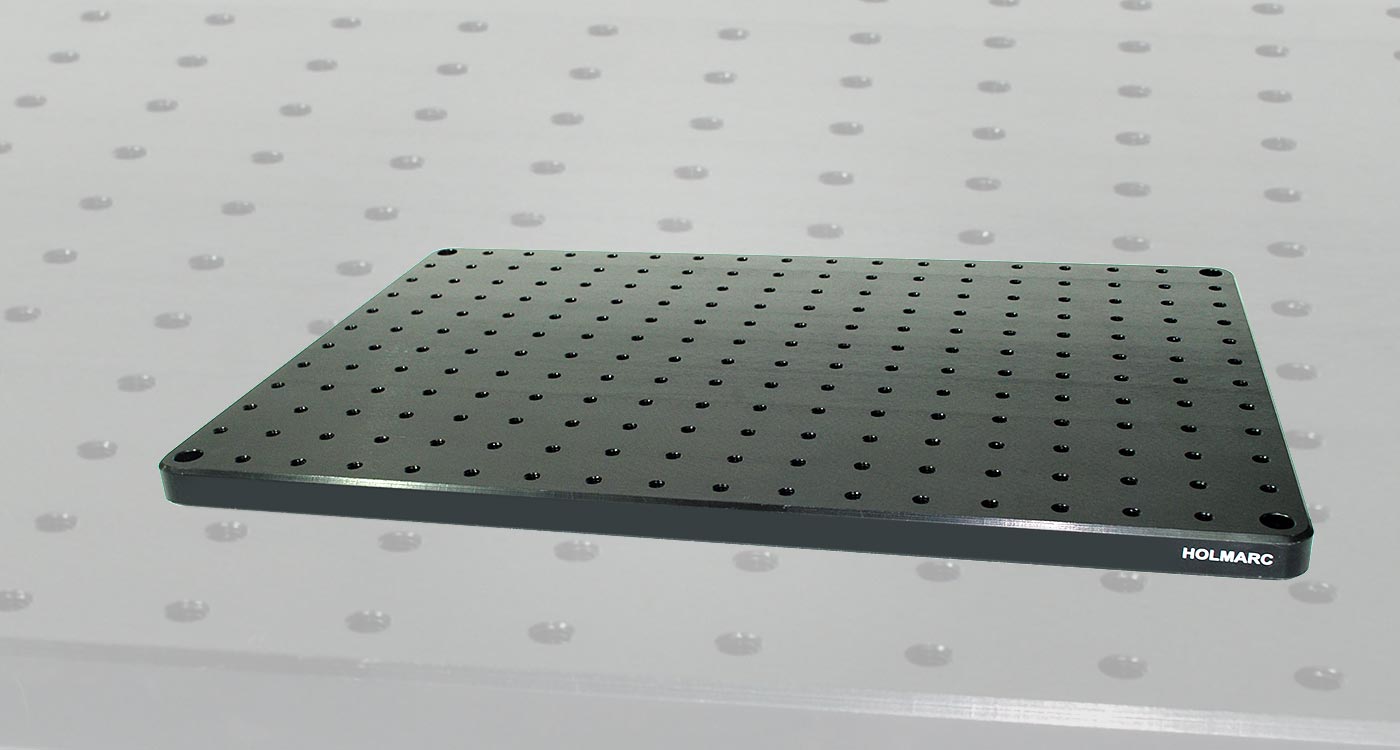

Standard Solid Breadboards are commonly used platforms for building optical setups. It’s thickness is 10mm. There are M6 tapped holes on 25mm grid. These breadboards are also available in vacuum compatible versions.
On request, tapped holes other than M6 can be provided on any array.

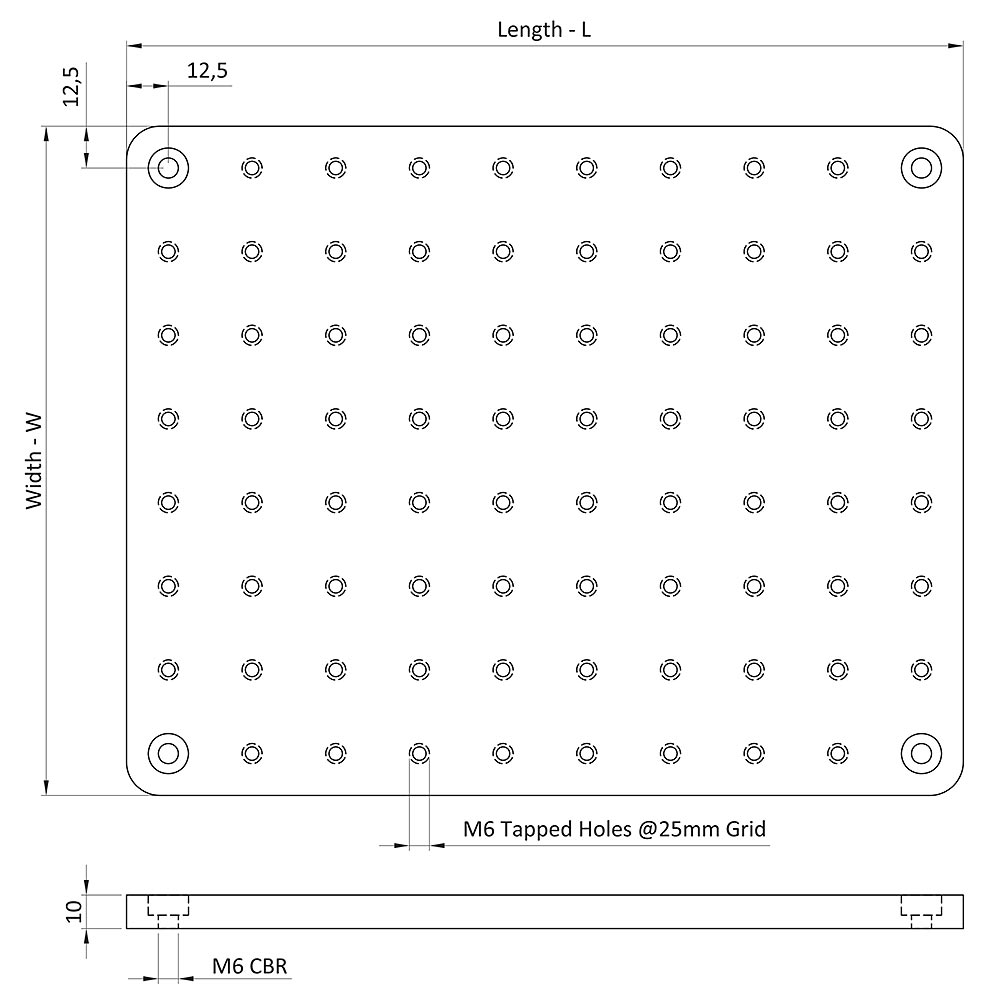

10 mm thick |
M6 Standard tapped holes on 25mm Grid |
Aluminium construction |
Black anodized finish for aluminium |
Machining tolerance +/- 0.3 mm over 300 mm length |
Surface flatness +/- 0.15mm over 300 mm square area |
Model No: | L (mm) | W (mm) | T (mm) | Mounting Hole | Price $ |
BB-100100-AL | 100 | 100 | 10 | M6 | 13.50 |
BB-100150-AL | 150 | 100 | 10 | M6 | 18.50 |
BB-100200-AL | 200 | 100 | 10 | M6 | 24.50 |
BB-100250-AL | 250 | 100 | 10 | M6 | 48.50 |
BB-100300-AL | 300 | 100 | 10 | M6 | 55.00 |
BB-100400-AL | 400 | 100 | 10 | M6 | 58.00 |
BB-150150-AL | 150 | 150 | 10 | M6 | 19.40 |
BB-150200-AL | 200 | 150 | 10 | M6 | 38.50 |
BB-150250-AL | 250 | 150 | 10 | M6 | 46.60 |
BB-150300-AL | 300 | 150 | 10 | M6 | 54.00 |
BB-150400-AL | 400 | 150 | 10 | M6 | 66.00 |
BB-200200-AL | 200 | 200 | 10 | M6 | 52.00 |
BB-200250-AL | 250 | 200 | 10 | M6 | 65.00 |
BB-200300-AL | 300 | 200 | 10 | M6 | 77.00 |
BB-200400-AL | 400 | 200 | 10 | M6 | 88.00 |
BB-250250-AL | 250 | 250 | 10 | M6 | 84.00 |
BB-250300-AL | 300 | 250 | 10 | M6 | 93.00 |
BB-250400-AL | 400 | 250 | 10 | M6 | 110.00 |
BB-300300-AL | 300 | 300 | 10 | M6 | 99.00 |
BB-300400-AL | 400 | 300 | 10 | M6 | 132.00 |
BB-400600-AL | 600 | 400 | 10 | M6 | 275.00 |
BB-400400-AL | 400 | 400 | 10 | M6 | 194.00 |

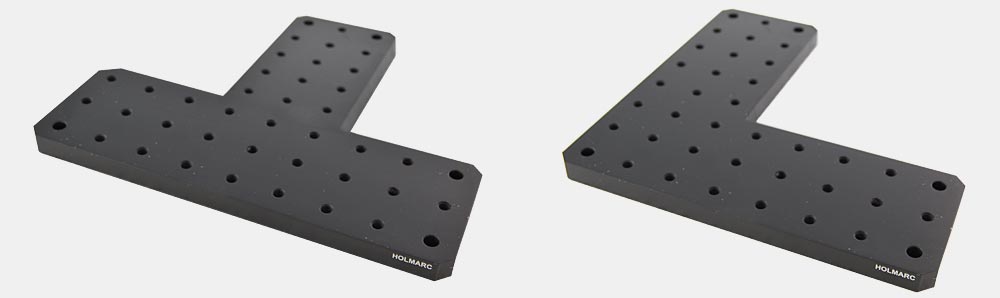

These BB series breadboards are available in various shapes, sizes and with different patterns of tapped holes other than standard models.
Please send us yours design or contact us at
