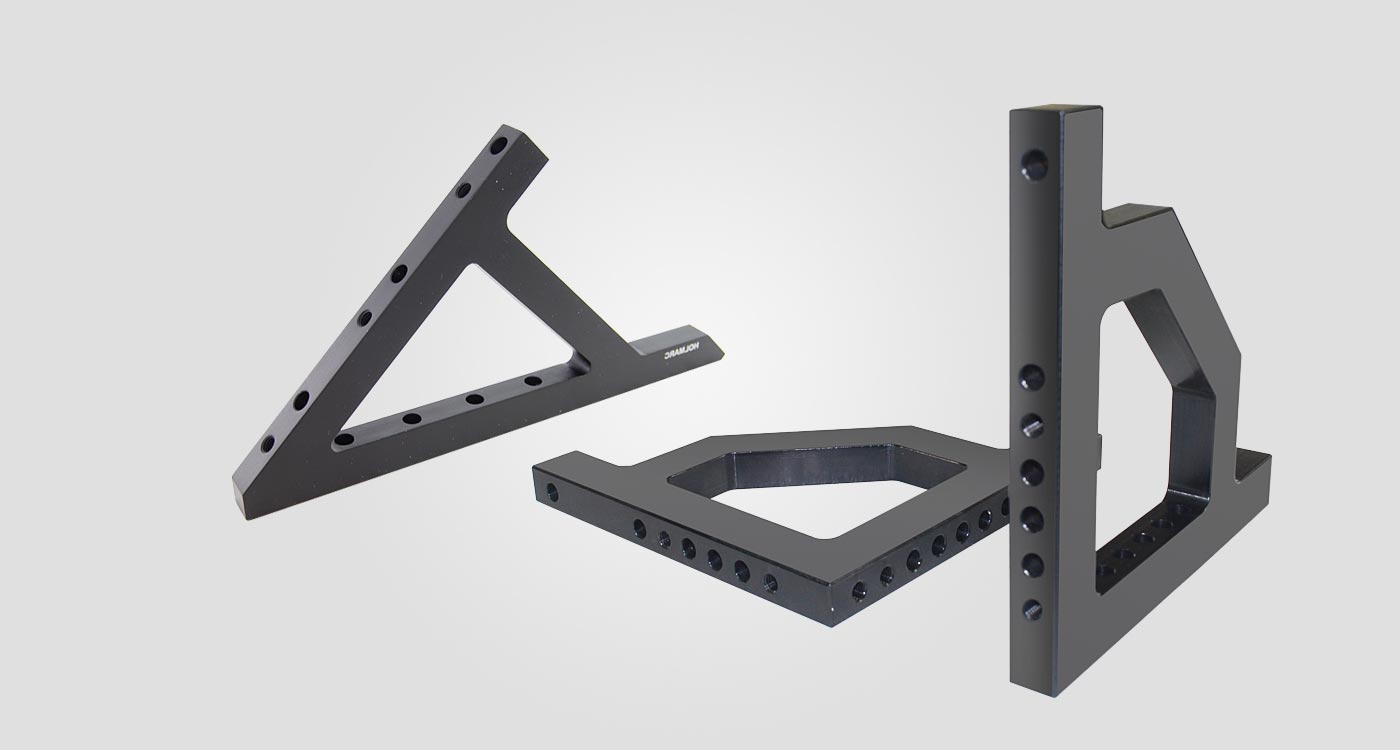

Angle Brackets : HOLMARC Angle Brackets are rigid, angled mounting plates with slotted faces. They are designed to mount aluminium breadboards to an optical table for achieving vertical or angled working surface. The 30, 45 and 90 degree angles are accurate upto +/- 0.05 degree.
90° Bracket : is designed to mount aluminium breadboard perpendicular to optical table for achieving vertical working surface.
| Material | : | Aluminium Alloy |
| Treatment | : | Anodized |
| Color | : | Black |
| Machining Tolerance | : | +/- 0.3 mm over 300 mm length |
| Thickness | : | 15mm +/- 0.5mm |
| Mounting angle | : | 90˚ / 45˚ |
| Surface Finish | : | Satin Finish |
| Mounting Holes | : | M6 tapped holes at 25mm Grid |
| 90° Bracket | Aluminium Black Anodized |
| Model No: | L / W (mm) | T (mm) | Mounting Hole | Price $ |
| 90B-100-AL | 100 | 15 | M6 CLR | 25.00 |
| 90B-150-AL | 150 | 15 | M6 CLR | 47.00 |
| 90B-200-AL | 200 | 15 | M6 CLR | 54.00 |
| 90B-250-AL | 250 | 15 | M6 CLR | 84.00 |
| 90B-300-AL | 300 | 15 | M6 CLR | 100.00 |
| 90B-350-AL | 350 | 15 | M6 CLR | 109.00 |
| 45° Bracket | Aluminium Black Anodized |
| Model No: | L / W (mm) | T (mm) | Mounting Hole | Price $ |
| 45B-100-AL | 100 | 15 | M6 CLR | 25.00 |
| 45B-150-AL | 150 | 15 | M6 CLR | 37.00 |
| 45B-200-AL | 200 | 15 | M6 CLR | 49.00 |
| 45B-250-AL | 250 | 15 | M6 CLR | 83.00 |
| 45B-300-AL | 300 | 15 | M6 CLR | 92.00 |
| 45B-350-AL | 350 | 15 | M6 CLR | 105.00 |

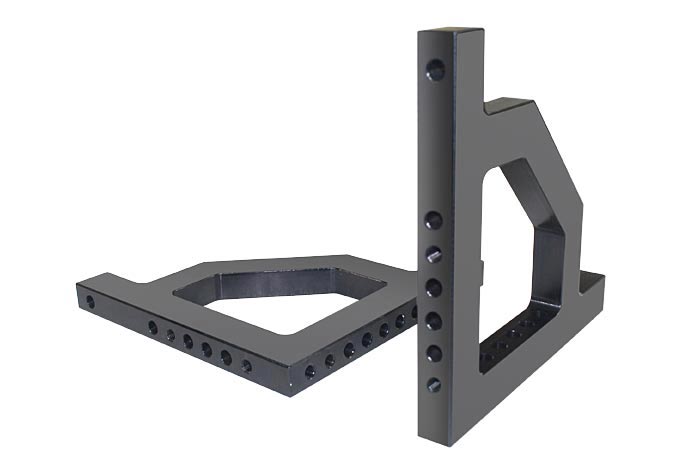

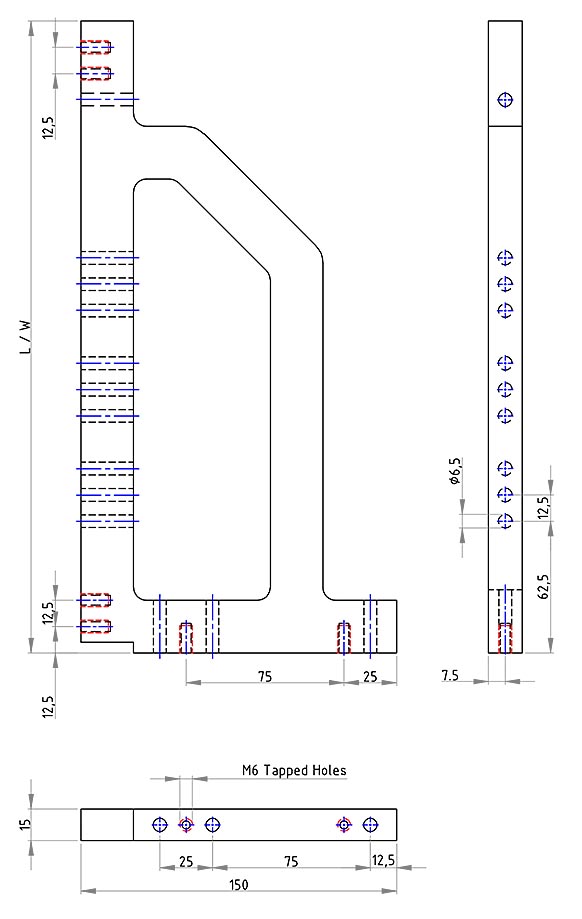

Fig. 90B-AL Vertical 90 Degree Angle Brackets

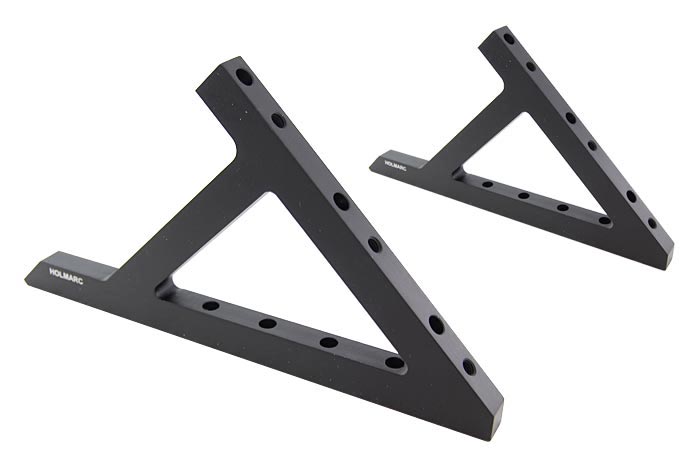

Fig. 45B-AL Vertical 45 Degree Angle Brackets

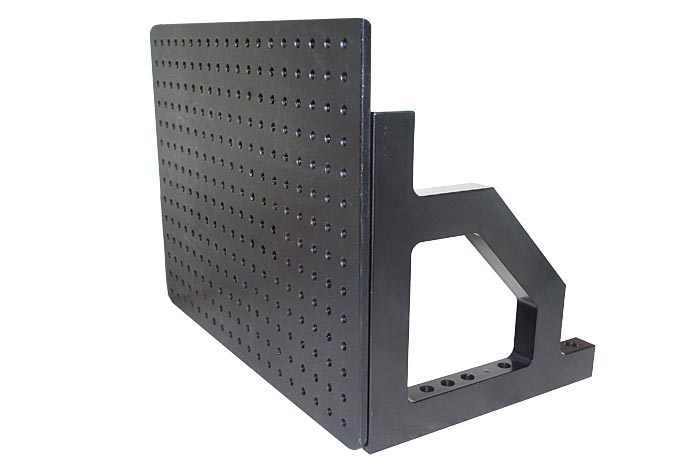

Fig. 90B-AL Vertical 90 Degree Angle Brackets with Standard Solid Breadboard
