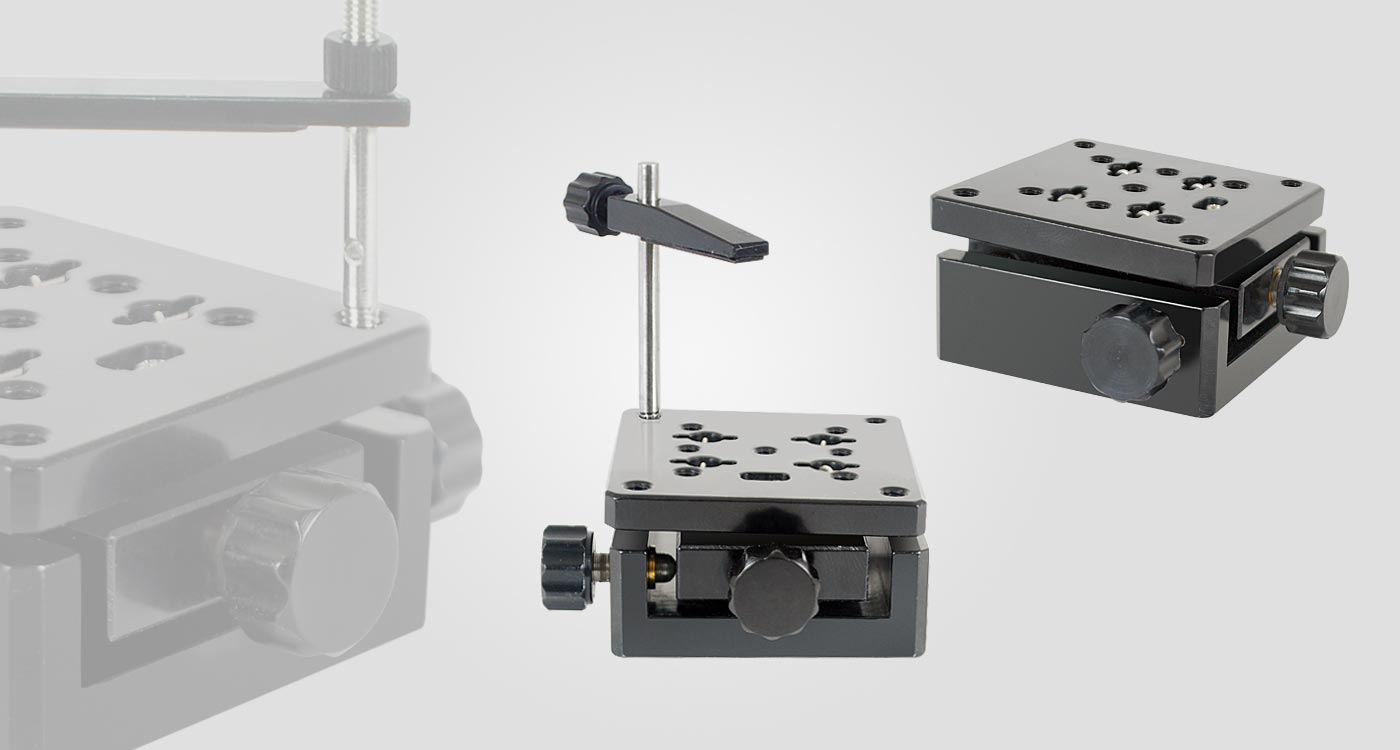

Dual Axis Tilt Platform Mount

TRS Series

Available for up to 50mm optic size
Vertical and horizontal mounting orientations

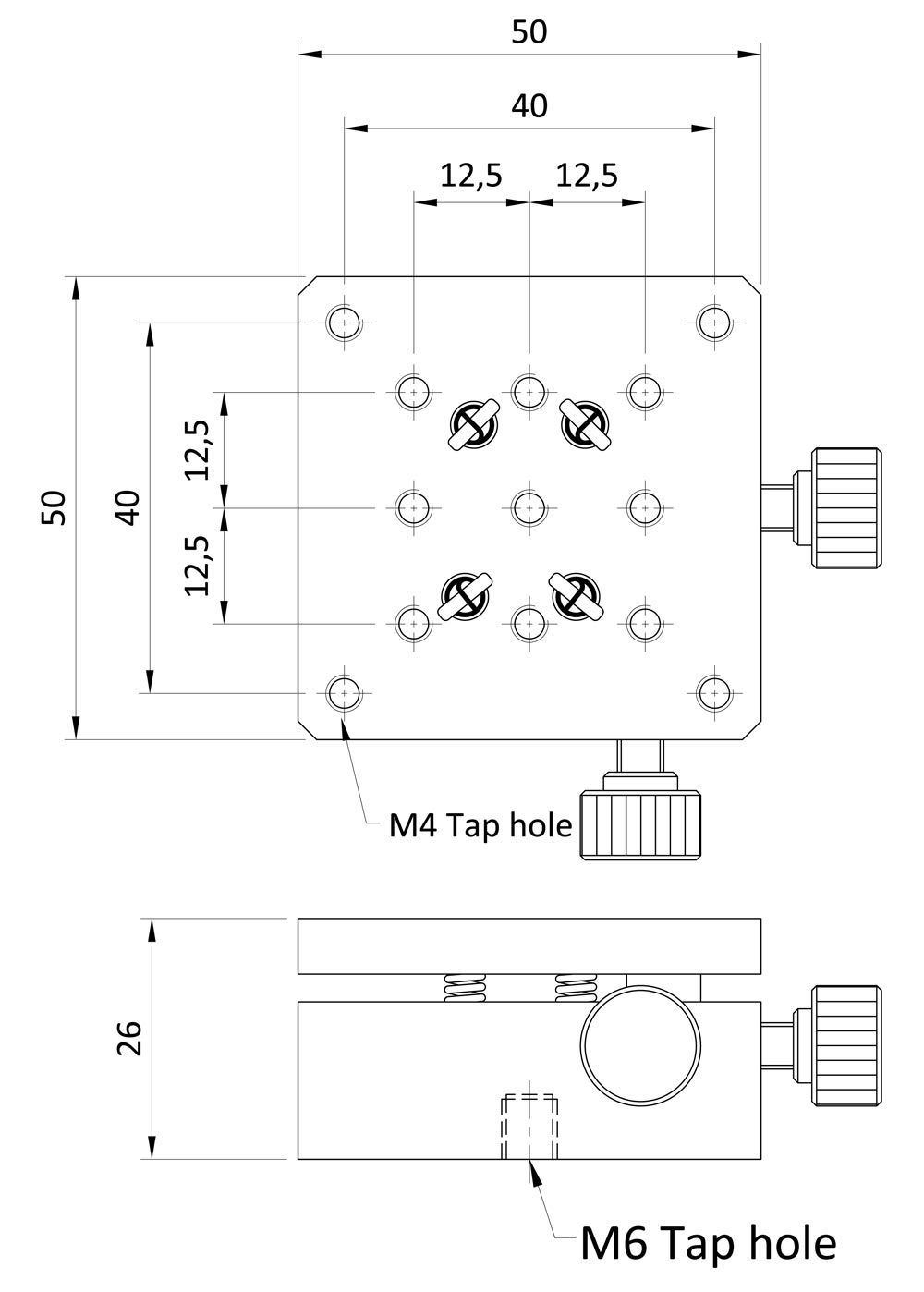

TRS series dual axis tilt platform mounts are available for optics up to 50 mm. M6 and M4 tapped holes are provided on a 12.5 mm grid for mounting various optical or opto-mechanical components over the platform. There are 3 sets of M6 tapped holes at the back plate of platform for post mounting applications. Suitable prism clamps are provided along with kinematic platform.


    Angular tip / tilt     :     +/- 3°
    Translation range     :     6 mm (selected models only)
    Linear resolution     :     0.25 mm
    Sensitivity     :     4 arc sec.
    Mounting hole     :     M6 / M4
    Mounting orientation     :     Vertical & horizontal
    Material     :     Aluminium
    Finishl     :     Black anodized

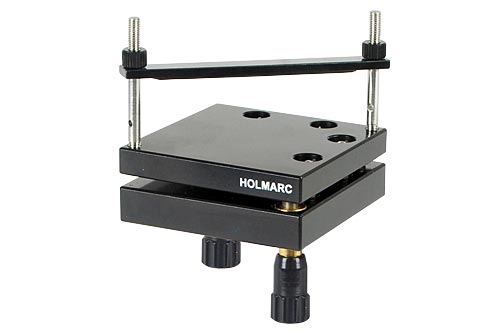

Kinematic Platform Mount

KPM series Kinematic platforms are available for optics up to 90 mm size. M6 and M4 tapped holes are provided on a 12.5mm grid for mounting...

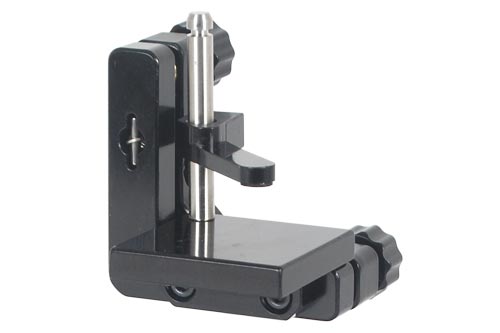

Kinematic Prism Mount

KTM series kinematic prism mounts enable horizontal & vertical mounting. Left / Right orientations can be easily arranged using detachable platform.

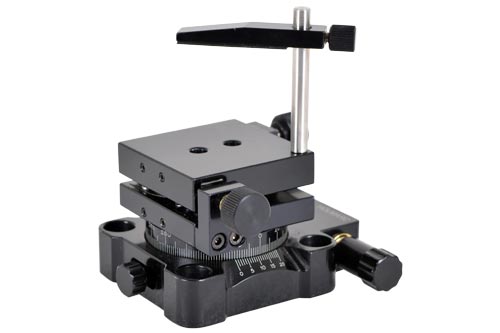

Tilt and Rotation Stage

PMNP - R series prism / cube mounts have three degrees of freedom, two tilt and one rotation. M6 C’bored holes are provided at the base for...



Model No: Type Optic Size Mounting Hole Drawing Price $
TRS-25 Dual axis tilt platform mount
with Plain Surface
Upto 38 M6 83.00
TRS-50 Upto 50 M6 97.00
TRSS-25 Dual axis tilt platform mount
with Single Post
Upto 38 M6   101.00
TRSS-50 Upto 50 M6   116.00
TRSD-25 Dual axis tilt platform mount
with Dual Post
Upto 38 M6   105.00
TRSD-50 Upto 50 M6   119.00





Dual Axis Tilt Platform

Model No. PB - TLD - 75
$ 78.79
