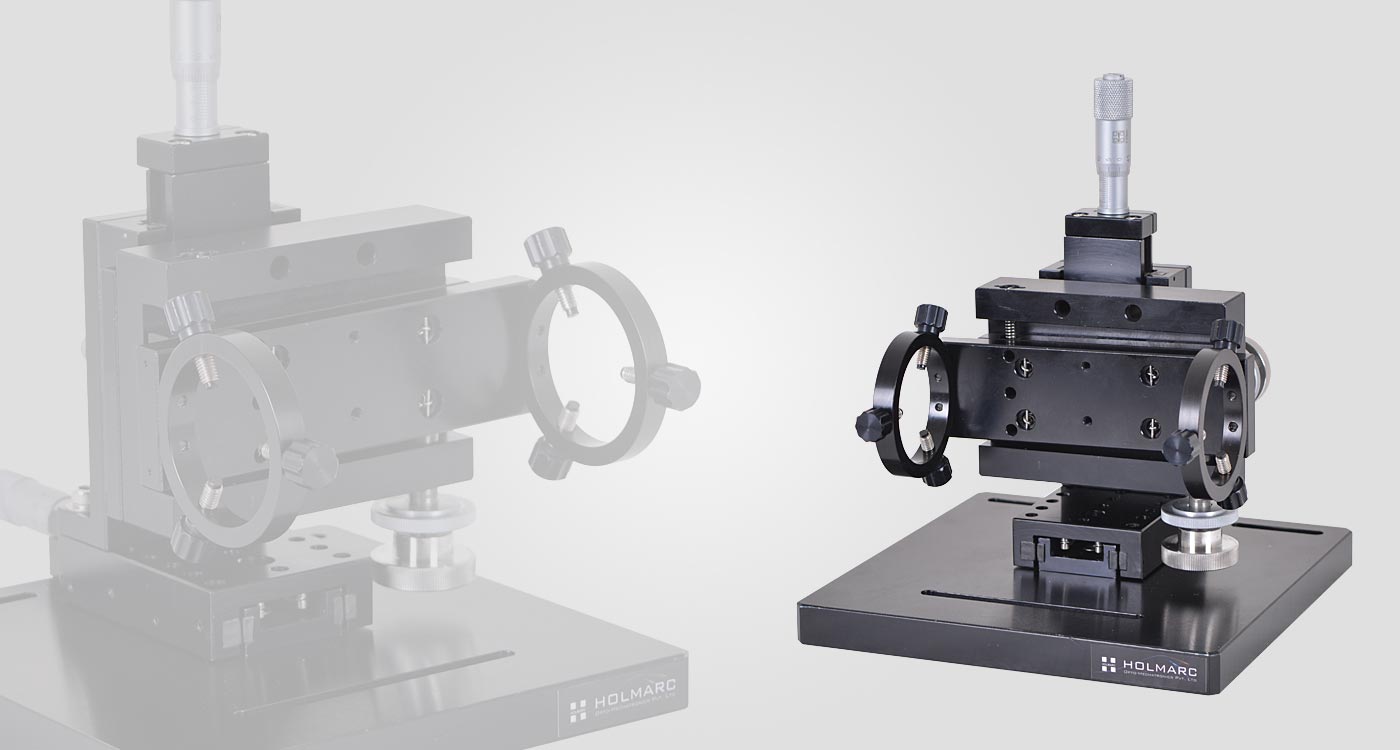

Base Mountable XZ Tilt &

Rotation Laser Mount

Fine XY Adjustable Versions
Mounting directly to breadboard

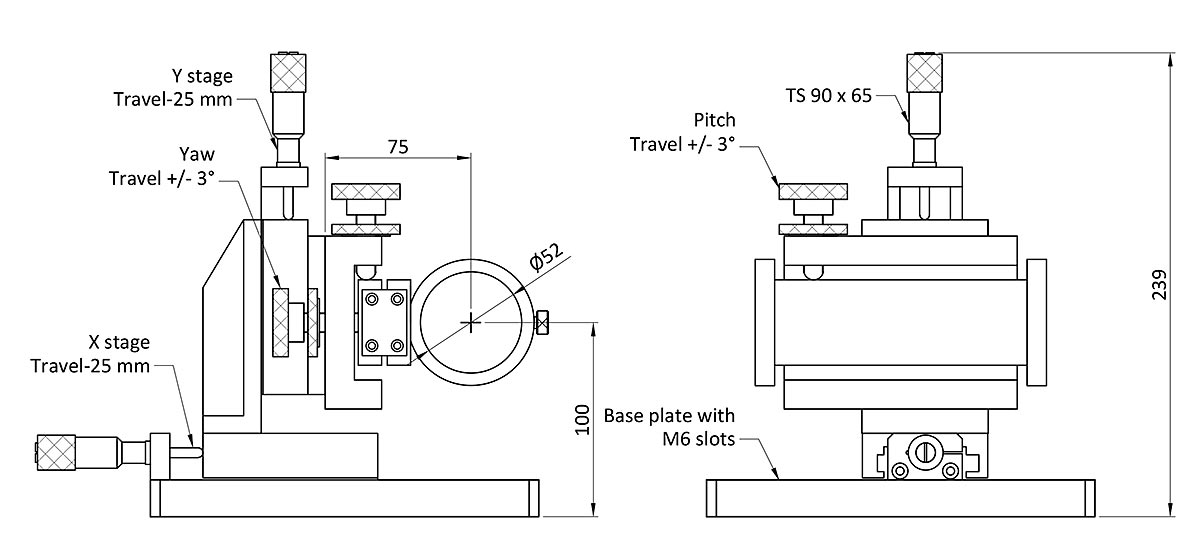

This laser mount has a base plate with M6 slots for fixing to breadboards or optical tables. There are micro meter driven translation stages for X and Z axis adjustments.


    X travel :     25 mm
    Z travel :     25 mm
    Pitch :     ± 3°
    Yaw :     ± 3°
    Minimum height :     150 mm
    Maximum height :     450 mm
    Maximum laser diameter :     50 mm
    Material :     aluminium
    Mounting holes :     M6 CLR slots



Model No Max Laser Dia: Price $
HB-LM-50 50 mm 600.00
