Height Adjustable XZ Tilt &

Rotation Laser Mount

Fine XY Adjustable Versions
Up & down orientations for Lasers

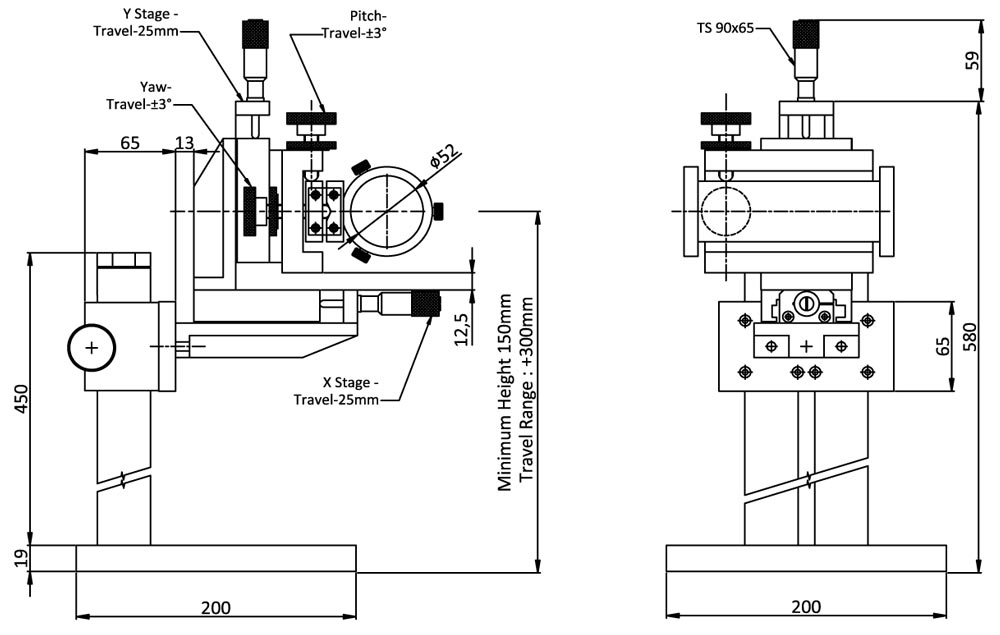

This laser mount is fixed to a pillar system so that the entire laser assembly can be positioned anywhere on the pillars. Linear adjustments along X and Z axis are provided by micrometer driven translation stages. Tilt control is given by a thumb screw.


    X travel :     25 mm
    Z travel :     25 mm
    Pitch :     ± 3°
    Yaw :     ± 3°
    Minimum height :     150 mm
    Maximum height :     450 mm
    Maximum laser diameter :     50 mm
    Material :     aluminium
    Mounting holes :     M6 CLR slots



Model No Max Laser Dia: Price $
HA-LM-50 50 mm 807.00
