Pedestal Post

Available in Heights from 30 to 500mm
M6 Tapped holes on both sides

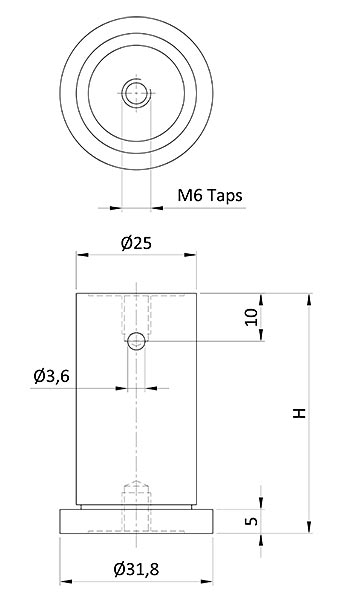

Pedestal posts are of 25mm diameter with precision ground finish. Both ends of the pedestal post are tapped suitable for M6 screws. A 3.6mm diameter hole is provided on the surface of the post for providing extra torque while tightening components on it. We can use 3.5mm allen key or a screwdriver with less than 3.6mm diameter for tightening. Pedestal fork PF 25 is suitable for pedestal posts.

Model No Height (mm) Price ( $ )
PP - 5 5 19.00
PP - 10 10 24.00
PP - 12 12 27.00
PP - 20 20 28.00
PP - 25 25 30.00
PP - 50 50 33.00
PP - 75 75 44.00
PP - 100 100 51.00
