Pillar Post

M6 Tapped holes on both sides
Available in Heights from 5 to 100mm

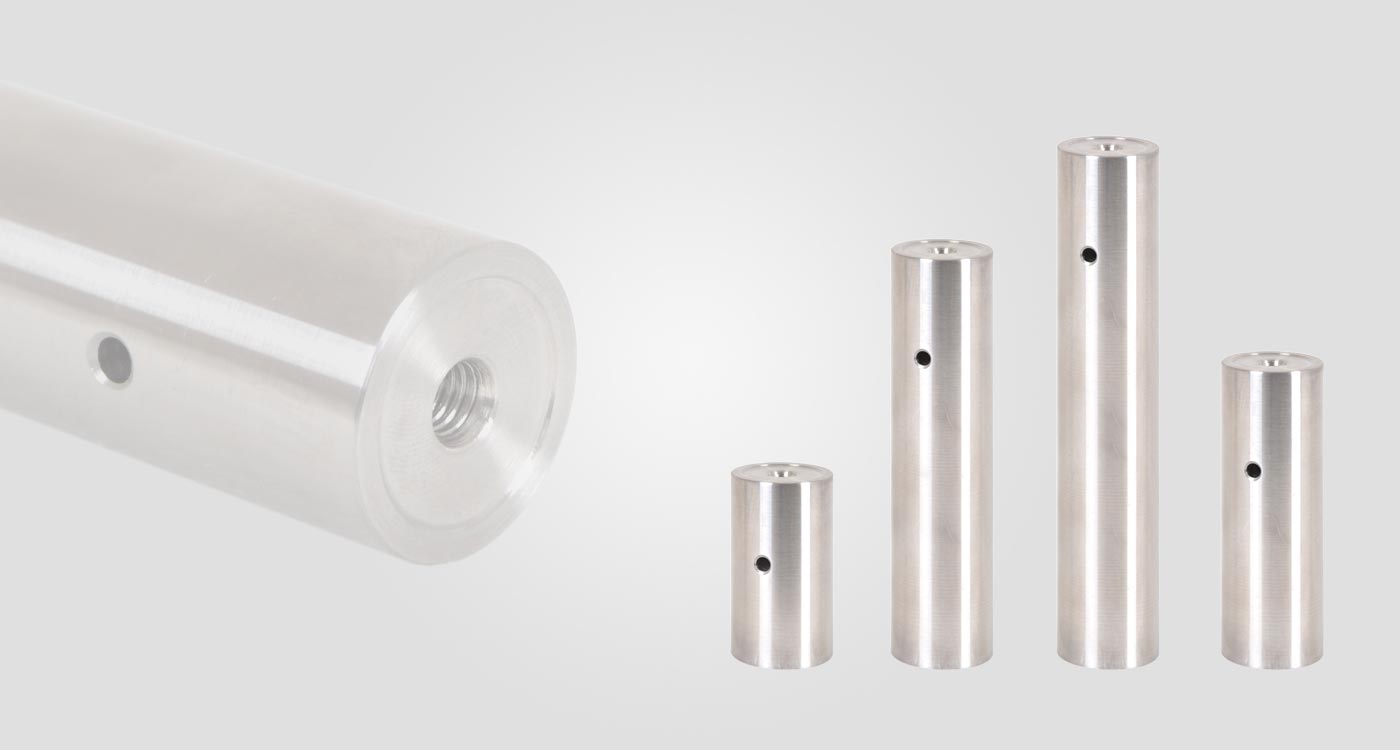

PLP series stainless steel pillar posts are designed to construct rigid structures in various heights. Diameter of the pillar post is 25mm with precision ground finish. Both ends of the pillar post are tapped suitable for M6 screw. A 3.6mm diameter hole is provided on the surface of the post for providing extra torque while tightening components on it. We can use 3.5mm allen key or a screwdriver with less than 3.6mm diameter for tightening. By using pedestal adapter PPA-PG-12D and pedestal fork PF 25 we can fix the pillar post to the base plate. Pedestal shims can be used to raise height with 0.1mm increment while setting up optical experiments.


        Stainless steel
        Compatible with PPA-PG-12D adapter
        Compatible fork, PF-25
        M6 Mounting holes
        Compatible with shims


Model No Height (mm) Price ( $ )
PLP - 30 30 21.00
PLP - 38 38 27.00
PLP - 50 50 30.00
PLP - 75 75 33.00
PLP - 100 100 39.00
PLP - 150 150 44.00
PLP - 200 200 54.00
PLP - 250 250 46.00
PLP - 300 300 65.00
PLP - 500 500 97.00
