Right Angle Prisms

Different coating options possible
Used as 180° beam retroreflector

Right Angle Prisms are used to re-direct a beam of light at 90 degrees from the incident direction or used as 180° beam retroreflector. We offer these prisms uncoated or with five different coating options, namely;


    Single layer anti-reflection coating on legs.

    Protected aluminum on hypotenuse and single layer anti-reflection on legs.

    Protected aluminum on hypotenuse.

    Protected aluminum on legs

    Single layer anti-reflection coating on hypotenuse.

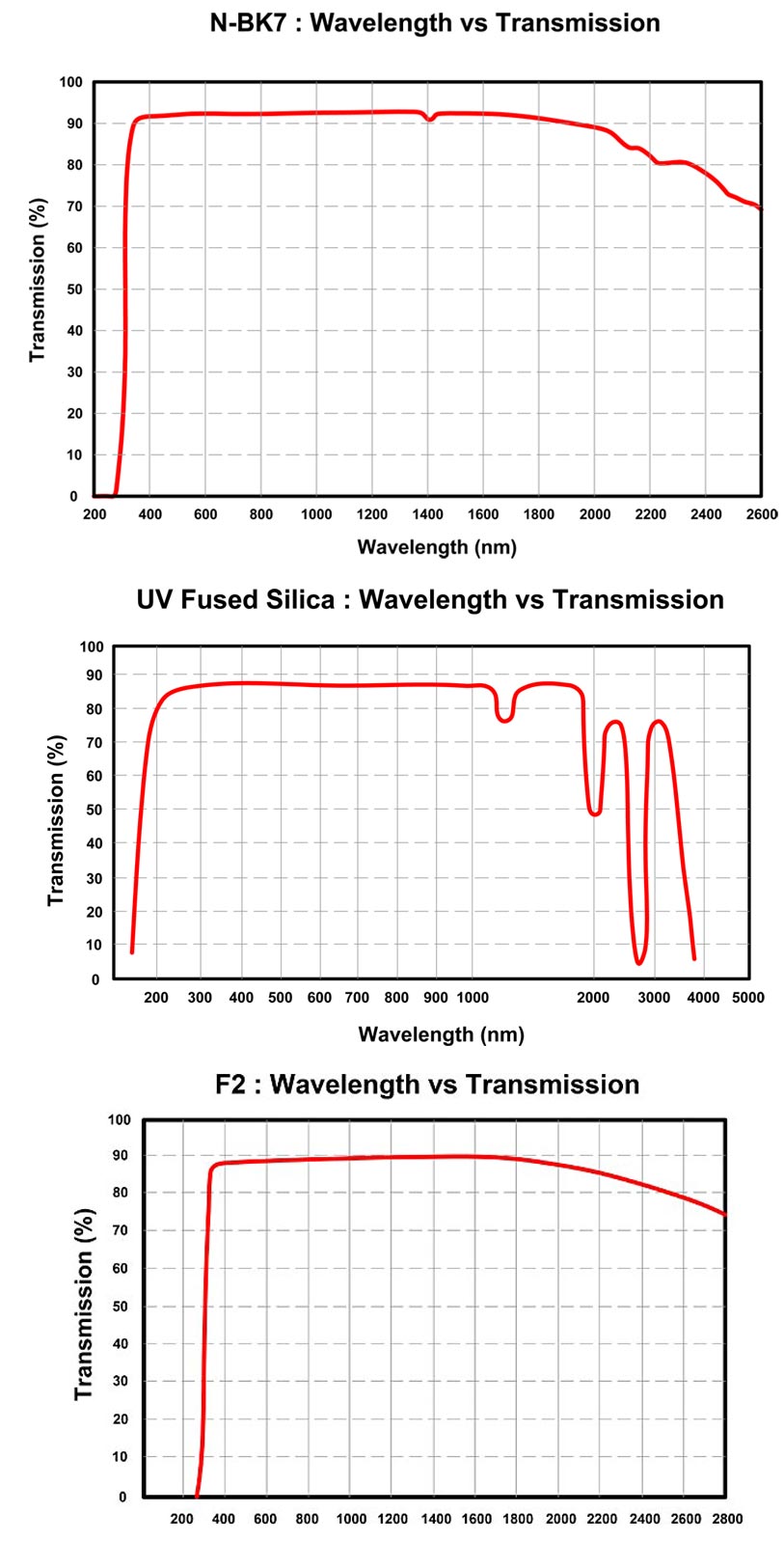

    Material :     BK7 or equivalent, F2 & fused silica
    Effective aperture :     90 %
    Surface Quality :     40 - 20 (scratch-dig)
    Dimensional Tolerance :     + 0.0, -0.2 mm
    Angle tolerance :     +/- 3 arc min
    Surface flatness :     λ / 4 @ 632.8 nm
    Perpendicularity :     +/- 3 arc min
    Protective chamfer :     0.2 mm x 45°
    Coating :     Optional








Model No. a = b = c ( mm ) Material
A* B* C* D* E* F*
HO-RPB-A-5 HO-RPB-B-5 HO-RPB-C-5 HO-RPB-D-5 HO-RPB-E-5 HO-RPB-F-5 5 BK7
or
equivalent
HO-RPB-A-10 HO-RPB-B-10 HO-RPB-C-10 HO-RPB-D-10 HO-RPB-E-10 HO-RPB-F-10 10
HO-RPB-A-20 HO-RPB-B-20 HO-RPB-C-20 HO-RPB-D-20 HO-RPB-E-20 HO-RPB-F-20 20
HO-RPB-A-25 HO-RPB-B-25 HO-RPB-C-25 HO-RPB-D-25 HO-RPB-E-25 HO-RPB-F-25 25
HO-RPB-A-38 HO-RPB-B-38 HO-RPB-C-38 HO-RPB-D-38 HO-RPB-E-38 HO-RPB-F-38 38
HO-RPB-A-50 HO-RPB-B-50 HO-RPB-C-50 HO-RPB-D-50 HO-RPB-E-50 HO-RPB-F-50 50
HO-RPS-A-5 HO-RPS-B-5 HO-RPS-C-5 HO-RPS-D-5 HO-RPS-E-5 HO-RPS-F-5 5 Fused Silica
HO-RPS-A-10 HO-RPS-B-10 HO-RPS-C-10 HO-RPS-D-10 HO-RPS-E-10 HO-RPS-F-10 10
HO-RPS-A-20 HO-RPS-B-20 HO-RPS-C-20 HO-RPS-D-20 HO-RPS-E-20 HO-RPS-F-20 20
HO-RPS-A-25 HO-RPS-B-25 HO-RPS-C-25 HO-RPS-D-25 HO-RPS-E-25 HO-RPS-F-25 25
HO-RPS-A-38 HO-RPS-B-38 HO-RPS-C-38 HO-RPS-D-38 HO-RPS-E-38 HO-RPS-F-38 38
HO-RPS-A-50 HO-RPS-B-50 HO-RPS-C-50 HO-RPS-D-50 HO-RPS-E-50 HO-RPS-F-50 50
HO-RPF-A-5 HO-RPF-B-5 HO-RPF-C-5 HO-RPF-D-5 HO-RPF-E-5 HO-RPF-F-5 5 F2
HO-RPF-A-10 HO-RPF-B-10 HO-RPF-C-10 HO-RPF-D-10 HO-RPF-E-10 HO-RPF-F-10 10
HO-RPF-A-20 HO-RPF-B-20 HO-RPF-C-20 HO-RPF-D-20 HO-RPF-E-20 HO-RPF-F-20 20
HO-RPF-A-25 HO-RPF-B-25 HO-RPF-C-25 HO-RPF-D-25 HO-RPF-E-25 HO-RPF-F-25 25
HO-RPF-A-38 HO-RPF-B-38 HO-RPF-C-38 HO-RPF-D-38 HO-RPF-E-38 HO-RPF-F-38 38
HO-RPF-A-50 HO-RPF-B-50 HO-RPF-C-50 HO-RPF-D-50 HO-RPF-E-50 HO-RPF-F-50 50

* A = Uncoated, B = Single layer anti-reflection coating on legs, C = Protected aluminum on hypotenuse and single layer antireflection on legs, D = Protected aluminum on hypotenuse, E = Protected aluminum on legs, F = Single layer anti-reflection coating on hypotenuse.

Price List

Model - A* Price ($) Model - B* Price ($) Model - C* Price ($)
HO-RPB-A-5 34.00 HO-RPB-B-5 48.00 HO-RPB-C-5 60.00
HO-RPB-A-10 36.00 HO-RPB-B-10 50.00 HO-RPB-C-10 62.00
HO-RPB-A-20 48.00 HO-RPB-B-20 62.00 HO-RPB-C-20 74.00
HO-RPB-A-25 54.00 HO-RPB-B-25 68.00 HO-RPB-C-25 80.00
HO-RPB-A-38 87.00 HO-RPB-B-38 101.00 HO-RPB-C-38 113.00
HO-RPB-A-50 133.00 HO-RPB-B-50 147.00 HO-RPB-C-50 159.00
HO-RPS-A-5 59.00 HO-RPS-B-5 73.00 HO-RPS-C-5 85.00
HO-RPS-A-10 69.00 HO-RPS-B-10 83.00 HO-RPS-C-10 95.00
HO-RPS-A-20 78.00 HO-RPS-B-20 92.00 HO-RPS-C-20 104.00
HO-RPS-A-25 115.00 HO-RPS-B-25 129.00 HO-RPS-C-25 141.00
HO-RPS-A-38 188.00 HO-RPS-B-38 202.00 HO-RPS-C-38 214.00
HO-RPS-A-50 321.00 HO-RPS-B-50 335.00 HO-RPS-C-50 347.00
HO-RPF-A-5 42.00 HO-RPF-B-5 56.00 HO-RPF-C-5 68.00
HO-RPF-A-10 51.00 HO-RPF-B-10 65.00 HO-RPF-C-10 77.00
HO-RPF-A-20 64.00 HO-RPF-B-20 77.00 HO-RPF-C-20 89.00
HO-RPF-A-25 79.00 HO-RPF-B-25 93.00 HO-RPF-C-25 105.00
HO-RPF-A-38 113.00 HO-RPF-B-38 127.00 HO-RPF-C-38 139.00
HO-RPF-A-50 174.00 HO-RPF-B-50 187.00 HO-RPF-C-50 199.00
Model - D* Price ($) Model - E* Price ($) Model - F* Price ($)
HO-RPB-D-5 45.00 HO-RPB-E-5 56.00 HO-RPB-F-5 41.00
HO-RPB-D-10 47.00 HO-RPB-E-10 58.00 HO-RPB-F-10 43.00
HO-RPB-D-20 60.00 HO-RPB-E-20 70.00 HO-RPB-F-20 55.00
HO-RPB-D-25 65.00 HO-RPB-E-25 76.00 HO-RPB-F-25 61.00
HO-RPB-D-38 98.00 HO-RPB-E-38 109.00 HO-RPB-F-38 94.00
HO-RPB-D-50 144.00 HO-RPB-E-50 155.00 HO-RPB-F-50 140.00
HO-RPS-D-5 70.00 HO-RPS-E-5 81.00 HO-RPS-F-5 65.00
HO-RPS-D-10 80.00 HO-RPS-E-10 91.00 HO-RPS-F-10 75.00
HO-RPS-D-20 89.00 HO-RPS-E-20 100.00 HO-RPS-F-20 85.00
HO-RPS-D-25 126.00 HO-RPS-E-25 137.00 HO-RPS-F-25 121.00
HO-RPS-D-38 199.00 HO-RPS-E-38 210.00 HO-RPS-F-38 195.00
HO-RPS-D-50 332.00 HO-RPS-E-50 343.00 HO-RPS-F-50 328.00
HO-RPF-D-5 53.00 HO-RPF-E-5 64.00 HO-RPF-F-5 49.00
HO-RPF-D-10 63.00 HO-RPF-E-10 74.00 HO-RPF-F-10 58.00
HO-RPF-D-20 75.00 HO-RPF-E-20 86.00 HO-RPF-F-20 70.00
HO-RPF-D-25 90.00 HO-RPF-E-25 101.00 HO-RPF-F-25 85.00
HO-RPF-D-38 124.00 HO-RPF-E-38 135.00 HO-RPF-F-38 120.00
HO-RPF-D-50 185.00 HO-RPF-E-50 196.00 HO-RPF-F-50 180.00
