Breadboards, Tabletops, Rails & Carriages


Rigid Tabletop Support
RTS Series
Rigid & non-isolating supporting frame
Epoxy coated steel with Moon light finish

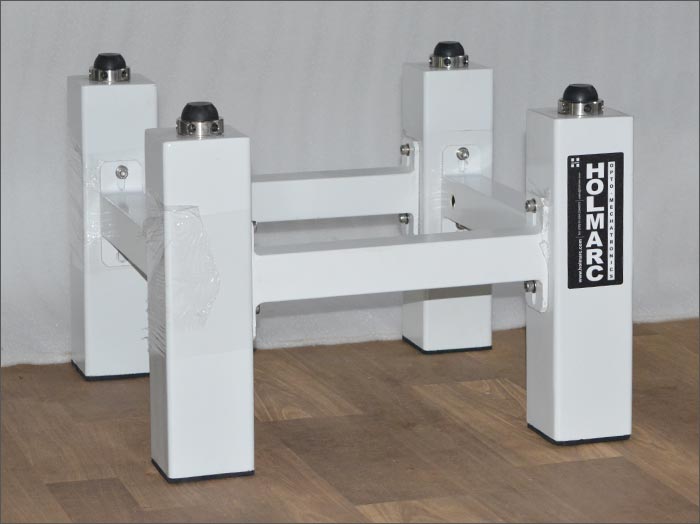

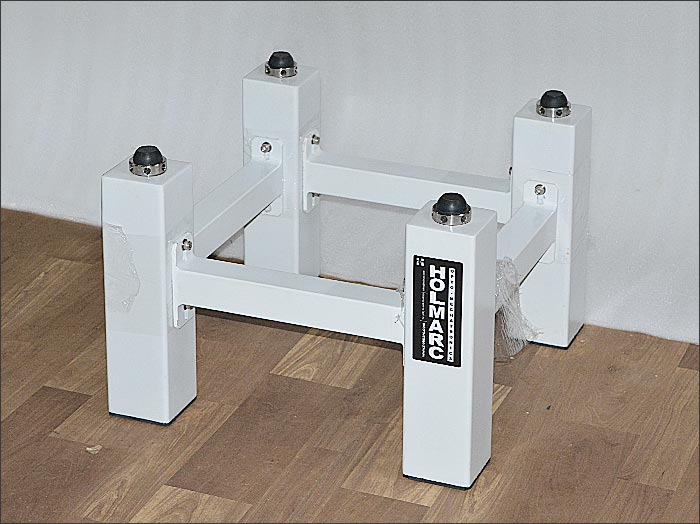

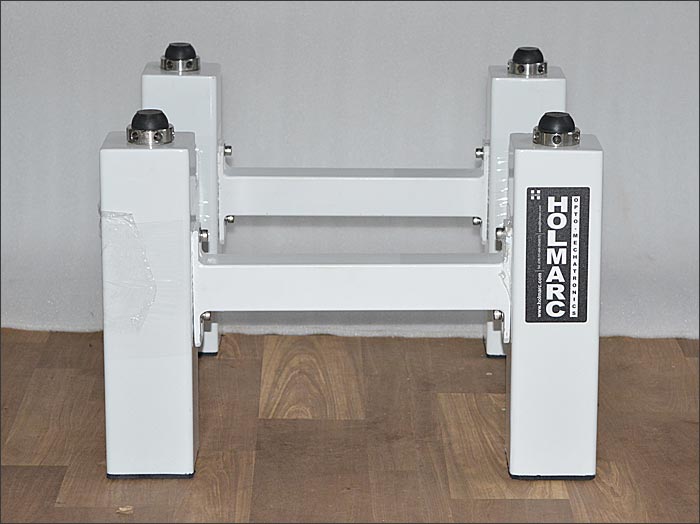

Rigid table top support system has four vertical members made from rectangular steel tubes and eight horizontal members made from 50 mm x 50 mm steel tubes. These members can be joined by nuts & bolts at the lab site. The honeycomb surface rest on four heavy-duty bolts on the top of the support system, which can also be adjusted for leveling. The adjustment range is +/- 4 cm. The support system is given moon light finish by epoxy paint.

Model No Suitable for Tabletop Model L x W (mm) L1 x W1 (mm) A (mm) No. of Legs Price
RTS 60-60 TT 60-60 600 x 600 500 x 500 90 4
RTS 90-60 TT 90-60 900 x 600 800 x 500 90 4
RTS 90-90 TT 90-90 900 x 900 800 x 800 90 4
RTS 120-90 TT 120-90 1200 x 900 1000 x 700 90 4
RTS 120-120 TT 120-120 1200 x 1200 820 x 820 90 4
RTS 180-120 TT 180-120 1800 x 1200 1420 x 820 90 4
RTS 180-150 TT 180-150 1800 x 1500 1420 x 1120 90 4
RTS 240-120 TT 240-120 2400 x 1200 2020 x 820 135 4
RTS 240-150 TT 240-150 2400 x 1500 2020 x 1120 135 6
RTS 300-120 TT 300-120 3000 x 1200 2620 x 820 135 6
RTS 300-150 TT 300-150 3000 x 1500 2620 x 1120 135 6
RTS 360-150 TT 360-150 3600 x 1500 3220 x 1120 135 6
    Note: For larger Tabletops, 6 or 8 legs have to be used depending on load. Motorized pump is supplied along with the system.
