Rectangular and Square

Windows

Available in different sizes
BK7 & Fused silica substrate

Optical Windows allow light beam to pass from one medium to another without changing the wavelength distribution or the transmitted wave front of the beam. Ideally, optical windows do not scatter light out of the beam. Holmarc offers windows in two different materials; N-BK7 & Fused Silica. Holmarc's windows are available in uncoated, single layer MgF2 coated, and broadband AR coated options.



    Material :     BK7 or equivalent & fused silica
    Surface quality :     40 - 20 ( scratch-dig )
    Dimensional Tolerance :     +0.0, -0.2mm
    Thickness tolerance :     +0.0, -0.2mm
    Surface flatness :     λ / 4 @ 632.8 nm
    Bevel :     0.2 mm x 45°
    Parallelism :     ≤ 1 arc min or 3 arc min

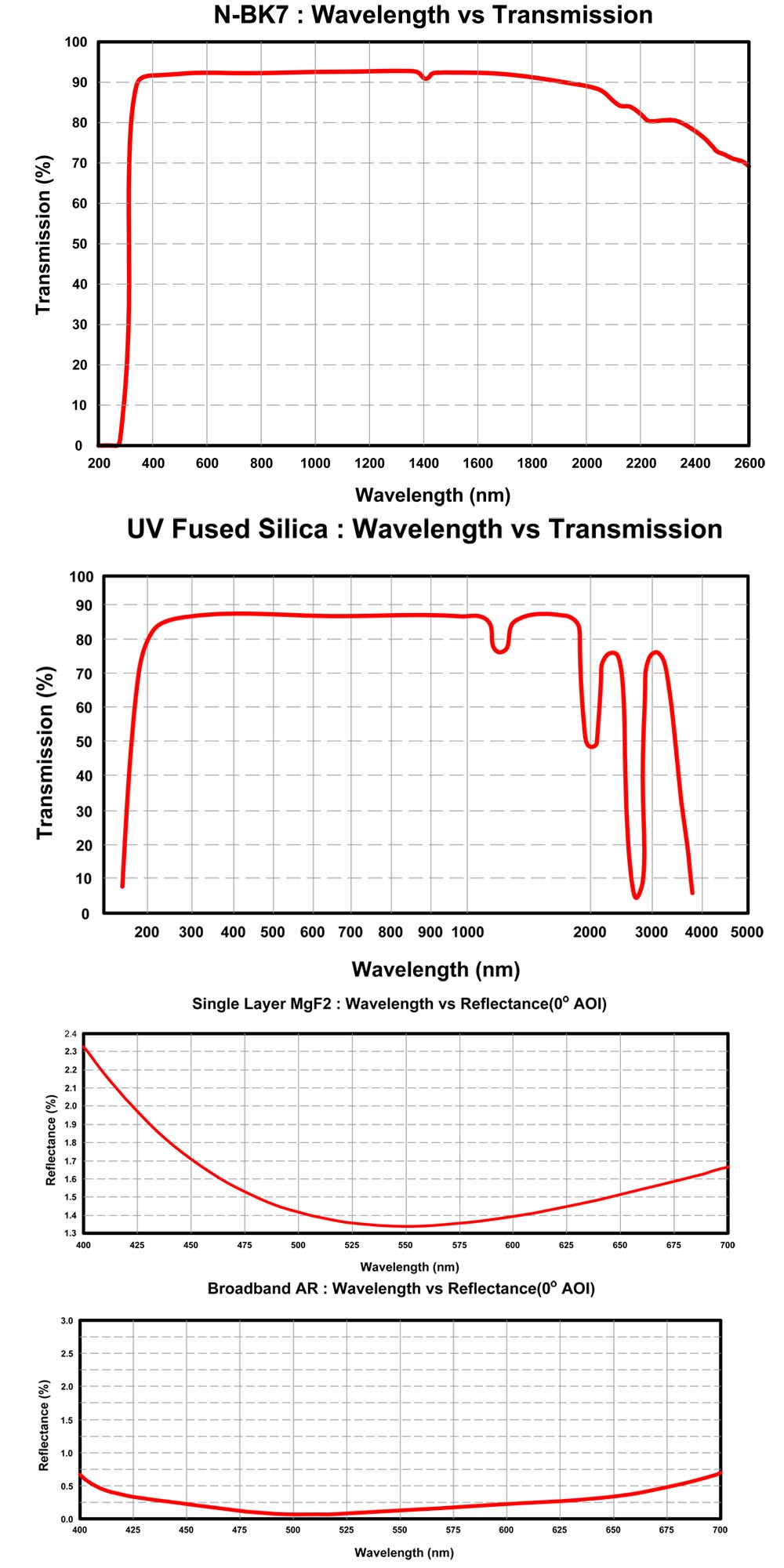

    Coating :     ( Optional )
    1. Uncoated
    2. Single layer MgF2
    3. Broadband AR ( Ravg < 0.5% @ 400-700 nm )











Circular Windows

These optical windows are precision manufactured using BK7 or equivalent and Fused silica. We can also work with substrates furnished by the customer.



Model No. Dimensions
A x B ( mm )
Thickness
T ( mm )
Parallelism
( arc min )
Material
Uncoated Single Layer MgF2 Broadband AR
HO-WRB-10-1 HO-WRBC-10-1 HO-WRBB-10-1 10 x 20 5 1 BK7 or equivalent
HO-WRB-10-3 HO-WRBC-10-3 HO-WRBB-10-3 10 x 20 5 3 BK7 or equivalent
HO-WRB-15-1 HO-WRBC-15-1 HO-WRBB-15-1 15 x 30 5 1 BK7 or equivalent
HO-WRB-15-3 HO-WRBC-15-3 HO-WRBB-15-3 15 x 30 5 3 BK7 or equivalent
HO-WRB-20-1 HO-WRBC-20-1 HO-WRBB-20-1 20 x 35 5 1 BK7 or equivalent
HO-WRB-20-3 HO-WRBC-20-3 HO-WRBB-20-3 20 x 35 5 3 BK7 or equivalent
HO-WSB-25-1 HO-WSBC-25-1 HO-WSBB-25-1 25 x 25 6 1 BK7 or equivalent
HO-WSB-25-3 HO-WSBC-25-3 HO-WSBB-25-3 25 x 25 6 3 BK7 or equivalent
HO-WRB-30-1 HO-WRBC-30-1 HO-WRBB-30-1 30 x 50 8 1 BK7 or equivalent
HO-WRB-30-3 HO-WRBC-30-3 HO-WRBB-30-3 30 x 50 8 3 BK7 or equivalent
HO-WSB-50-1 HO-WSBC-50-1 HO-WSBB-50-1 50 x 50 8 1 BK7 or equivalent
HO-WSB-50-3 HO-WSBC-50-3 HO-WSBB-50-3 50 x 50 8 3 BK7 or equivalent
Price List

Uncoated Price ($) Single Layer MgF2 Price ($) Broadband AR Price ($)
HO-WRB-10-1 32.00 HO-WRBC-10-1 40.00 HO-WRBB-10-1 49.00
HO-WRB-10-3 24.00 HO-WRBC-10-3 32.00 HO-WRBB-10-3 41.00
HO-WRB-15-1 45.00 HO-WRBC-15-1 53.00 HO-WRBB-15-1 62.00
HO-WRB-15-3 36.00 HO-WRBC-15-3 43.00 HO-WRBB-15-3 53.00
HO-WRB-20-1 67.00 HO-WRBC-20-1 75.00 HO-WRBB-20-1 84.00
HO-WRB-20-3 58.00 HO-WRBC-20-3 65.00 HO-WRBB-20-3 75.00
HO-WSB-25-1 64.00 HO-WSBC-25-1 71.00 HO-WSBB-25-1 80.00
HO-WSB-25-3 54.00 HO-WSBC-25-3 62.00 HO-WSBB-25-3 71.00
HO-WRB-30-1 69.00 HO-WRBC-30-1 76.00 HO-WRBB-30-1 86.00
HO-WRB-30-3 60.00 HO-WRBC-30-3 67.00 HO-WRBB-30-3 76.00
HO-WSB-50-1 89.00 HO-WSBC-50-1 97.00 HO-WSBB-50-1 106.00
HO-WSB-50-3 80.00 HO-WSBC-50-3 87.00 HO-WSBB-50-3 97.00
Model No. Dimensions
A x B ( mm )
Thickness
T ( mm )
Parallelism
( arc min )
Material
Uncoated Single Layer MgF2 Broadband AR
HO-WRS-10-1 HO-WRSC-10-1 HO-WRSB-10-1 10 x 20 5 1 Fused Silica
HO-WRS-10-3 HO-WRSC-10-3 HO-WRSB-10-3 10 x 20 5 3 Fused Silica
HO-WRS-15-1 HO-WRSC-15-1 HO-WRSB-15-1 15 x 30 5 1 Fused Silica
HO-WRS-15-3 HO-WRSC-15-3 HO-WRSB-15-3 15 x 30 5 3 Fused Silica
HO-WRS-20-1 HO-WRSC-20-1 HO-WRSB-20-1 20 x 35 5 1 Fused Silica
HO-WRS-20-3 HO-WRSC-20-3 HO-WRSB-20-3 20 x 35 5 3 Fused Silica
HO-WSS-25-1 HO-WSSC-25-1 HO-WSSB-25-1 25 x 25 6 1 Fused Silica
HO-WSS-25-3 HO-WSSC-25-3 HO-WSSB-25-3 25 x 25 6 3 Fused Silica
HO-WRS-30-1 HO-WRSC-30-1 HO-WRSB-30-1 30 x 50 8 1 Fused Silica
HO-WRS-30-3 HO-WRSC-30-3 HO-WRSB-30-3 30 x 50 8 3 Fused Silica
HO-WSS-50-1 HO-WSSC-50-1 HO-WSSB-50-1 50 x 50 8 1 Fused Silica
HO-WSS-50-3 HO-WSSC-50-3 HO-WSSB-50-3 50 x 50 8 3 Fused Silica
Price List

Uncoated Price ($) Single Layer MgF2 Price ($) Broadband AR Price ($)
HO-WRS-10-1 62.00 HO-WRSC-10-1 69.00 HO-WRSB-10-1 78.00
HO-WRS-10-3 53.00 HO-WRSC-10-3 60.00 HO-WRSB-10-3 69.00
HO-WRS-15-1 75.00 HO-WRSC-15-1 82.00 HO-WRSB-15-1 91.00
HO-WRS-15-3 65.00 HO-WRSC-15-3 73.00 HO-WRSB-15-3 82.00
HO-WRS-20-1 97.00 HO-WRSC-20-1 104.00 HO-WRSB-20-1 113.00
HO-WRS-20-3 87.00 HO-WRSC-20-3 95.00 HO-WRSB-20-3 104.00
HO-WSS-25-1 93.00 HO-WSSC-25-1 100.00 HO-WSSB-25-1 110.00
HO-WSS-25-3 84.00 HO-WSSC-25-3 91.00 HO-WSSB-25-3 100.00
HO-WRS-30-1 117.00 HO-WRSC-30-1 124.00 HO-WRSB-30-1 133.00
HO-WRS-30-3 108.00 HO-WRSC-30-3 115.00 HO-WRSB-30-3 124.00
HO-WSS-50-1 170.00 HO-WSSC-50-1 177.00 HO-WSSB-50-1 187.00
HO-WSS-50-3 161.00 HO-WSSC-50-3 168.00 HO-WSSB-50-3 177.00
