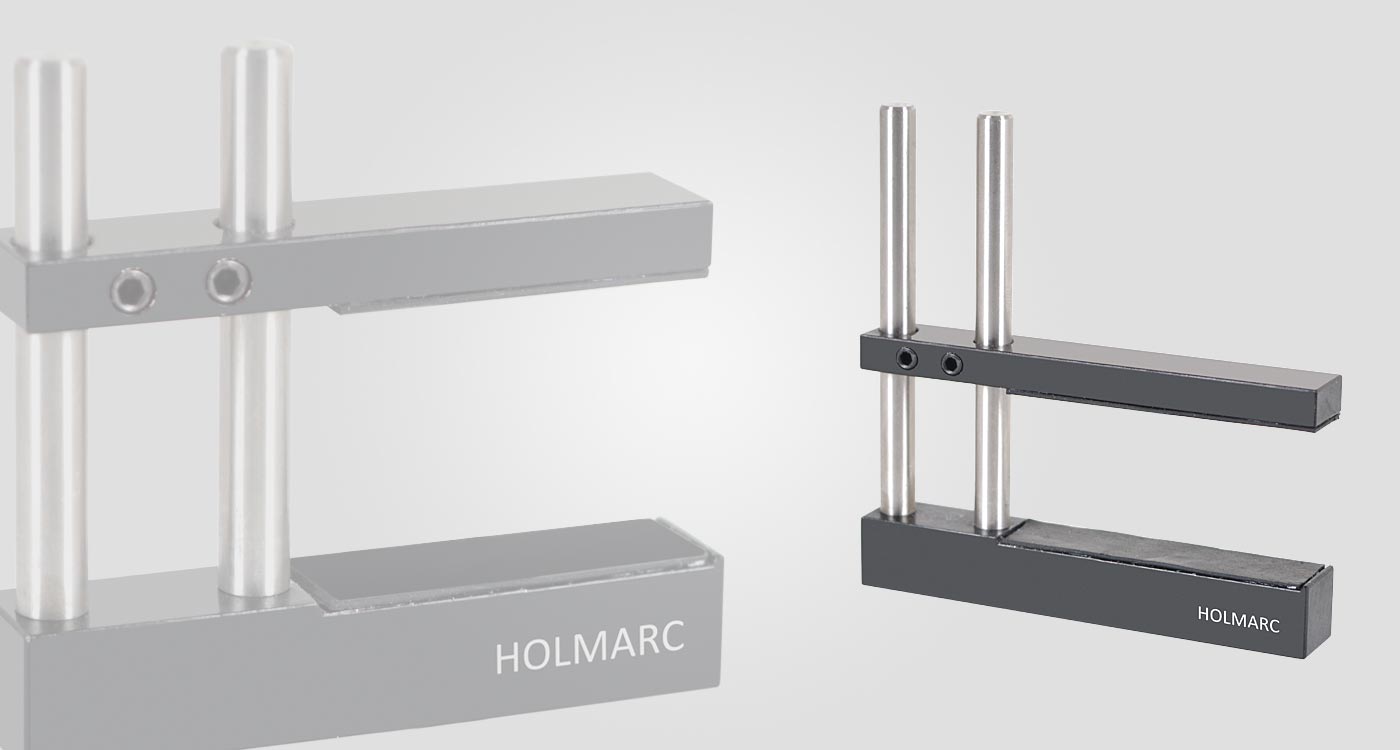

Cylindrical Lens Mounts

CLM Series
Perfect for rectangular or square cylindrical lenses
M6 mounting holes

This CLM series lens mounts are suitable for rectangular or square cylindrical lenses. These can be used to mount lenses up to 50 mm.

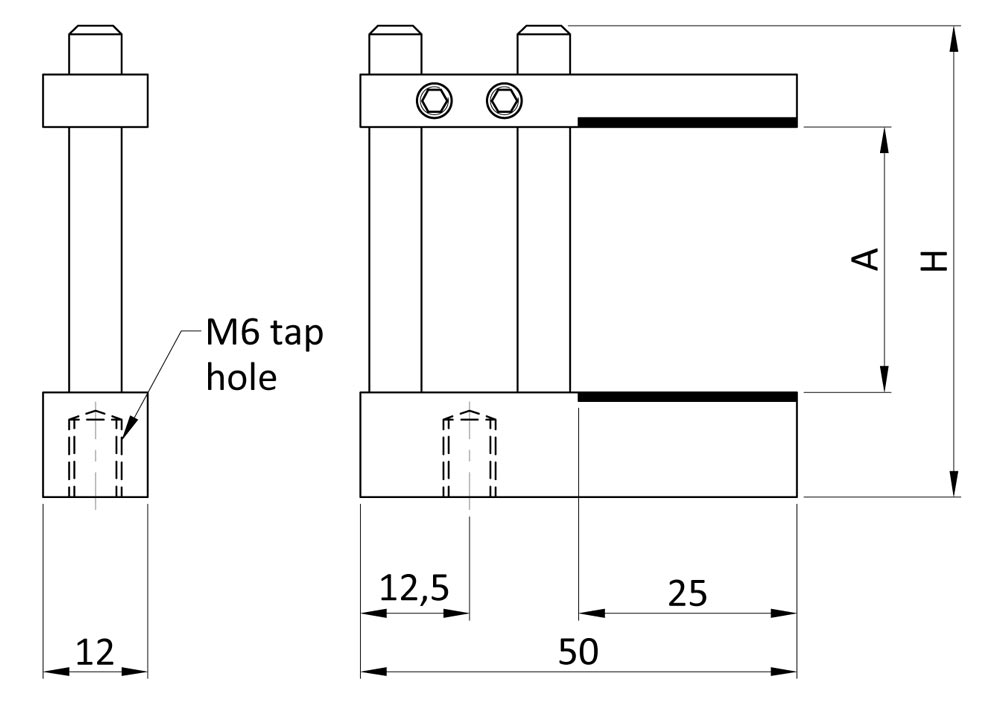

Model No A H Drawings Price $
CLM - 15 15 mm 34 mm   36.00
CLM - 25 25 mm 44 mm   38.00
CLM - 30 30 mm 54 mm   39.00
CLM - 50 50 mm 79 mm   41.00

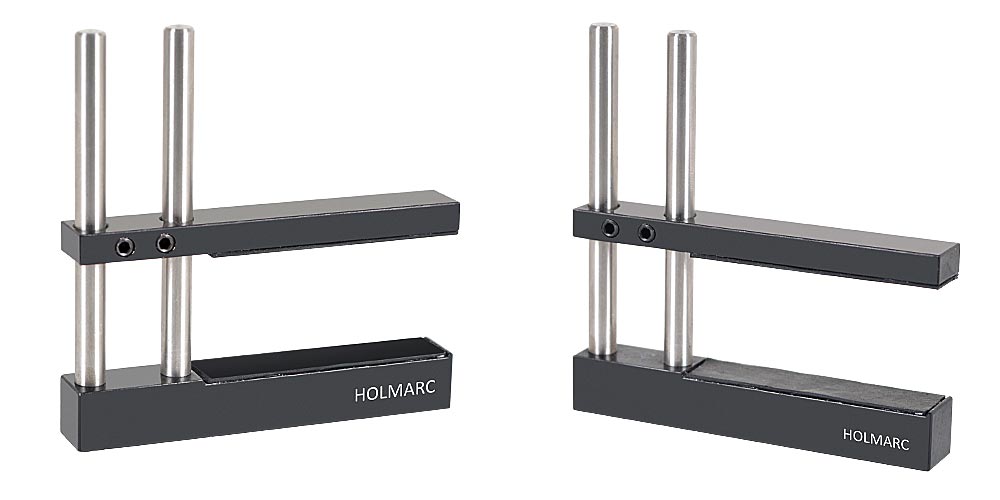

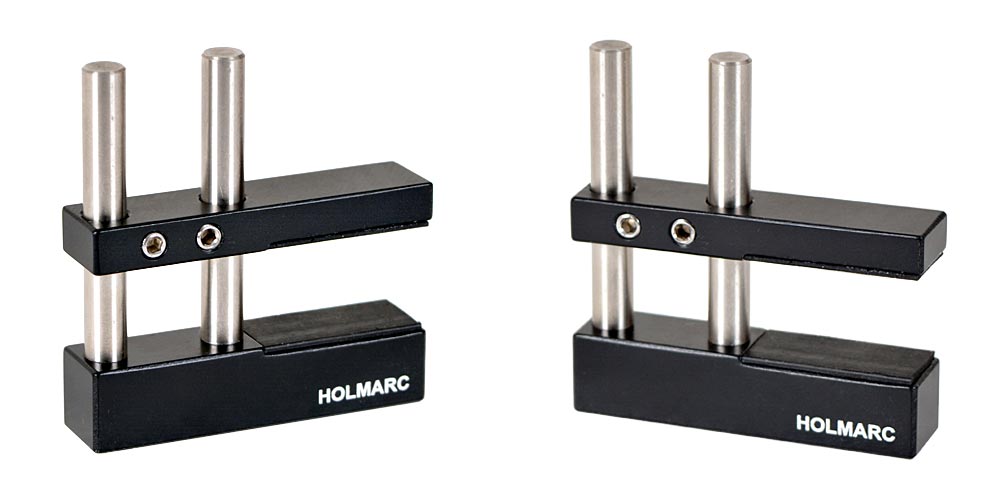

Model : CLM - 25

Model : CLM - 50








Cylindrical Lens Mount CLM - 25

Model No. CLM - 25
$ 33.00
Cylindrical Lens Mount CLM - 50

Model No. CLM - 50
$ 34.50
