Self Centering Lens Mounts

Micrometer Driven knob
Compatible with optics from 20 to 104 mm diameters

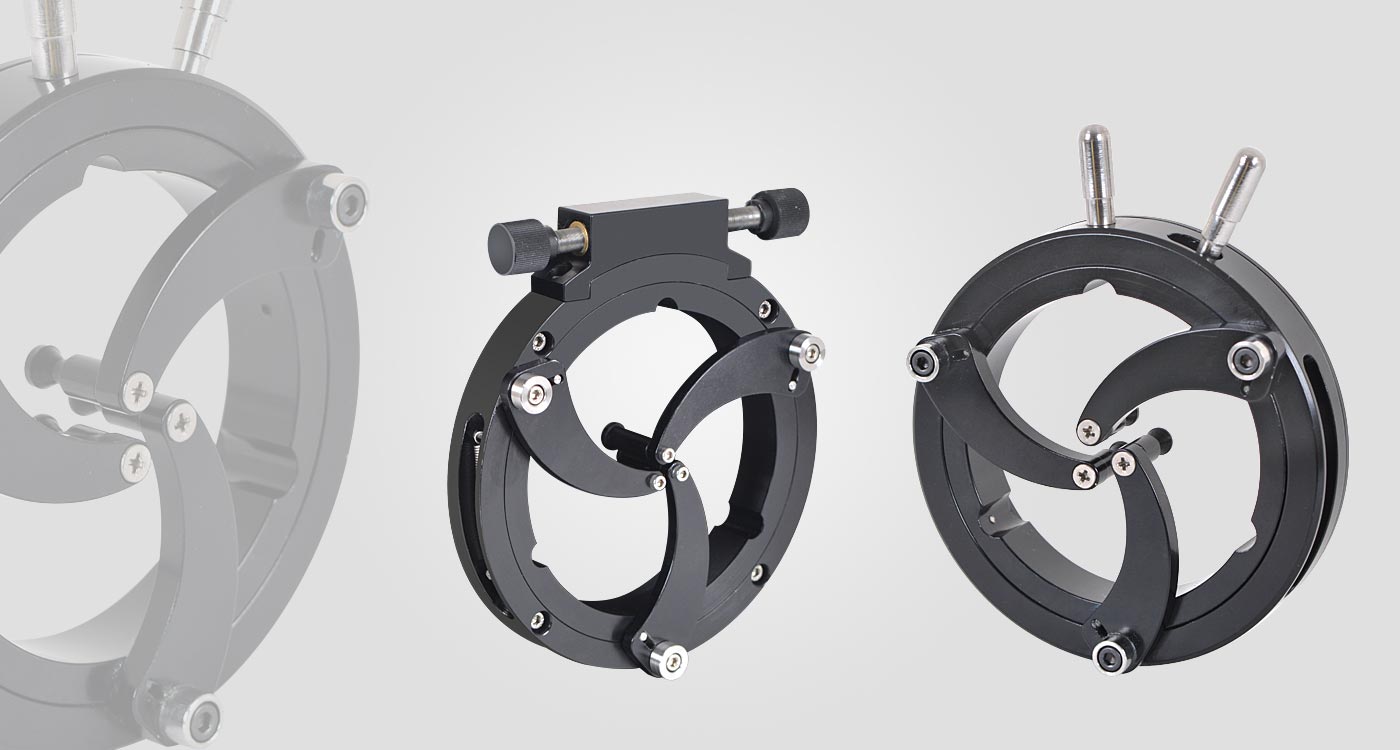

Self-centering lens mounts are suitable for experiments where frequent replacement of lens is required. The lens is held using three spring loaded calipers. The calipers are released by two levers projecting from the mount. The lens is held in position by spring tension and can be locked in position by a knob.

Model No Lens Size
Min - Max ( mm )
D1 ( mm ) D2 ( mm ) T (mm) Price $
SCLM - 50 6 - 50 90 ( max - 50 ) ( min - 6 ) 16 69.00
SCLM - 75 6 - 75 125 ( max - 75 ) ( min - 6 ) 16 82.00
SCLM - 100 6 - 100 125 ( max - 100 ) ( min - 6 ) 16 110.0


Model : SCLM - 75

Model : SCLM-AK- 75

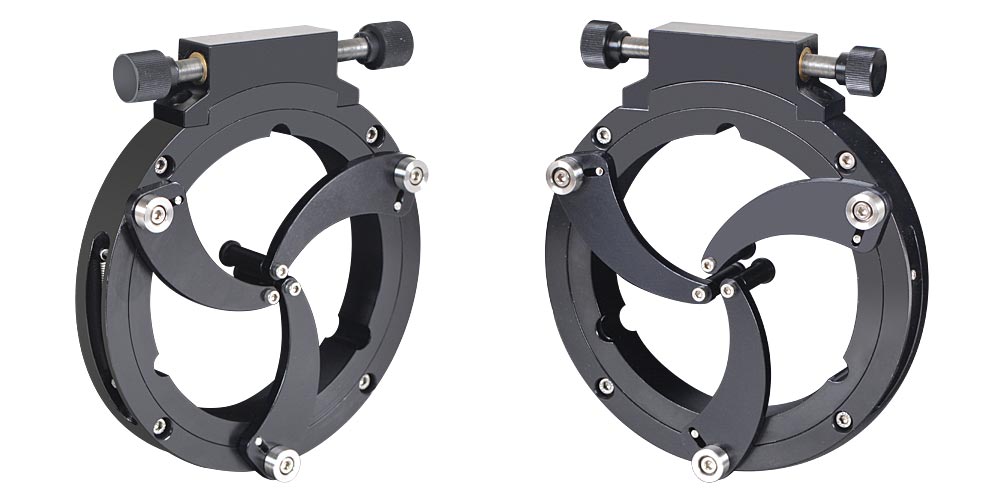

Self centering Mount with Adjustable knob


This self centering mount can be used to holed comparatively large optic (upto 104 mm dia) using self centering jaws. These jaws are held in position by adjustable lead screws for firm clamping.


Model No: Optice size Price $
SCLM-AK- 50 6 - 50 80.00
SCLM-AK- 75 6 - 75 92.00
SCLM-AK- 100 6 - 100 117.00

    Minimum optics dimater    :    20 mm

    Maximum optics diameter    :    104 mm

    Maximum thickness    :    22 mm

    Locking    :    by two screw adjusters

    Sensitivity    :    4 arc sec.

    Mounting hole    :    M6 Tapped hole for post mounting




Self Centering Lens Mount 50

Model No. SCLM - 50
$ 58.00
Self Centering Lens Mount 75

Model No. SCLM - 75
$ 69.00
