Focus Adjustable Lens Mounts

Have threaded bore to hold lens
Compatible to different mounts

This focus adjustable lens mount is used to adjust the focus of a lens by backward and forward motion of the lens mounted in it. The focal adjustment is done by rotating focusing head provided on the mount without rotating the lens inside. Lens is held in position by threaded rings inside a threaded bore of the device.

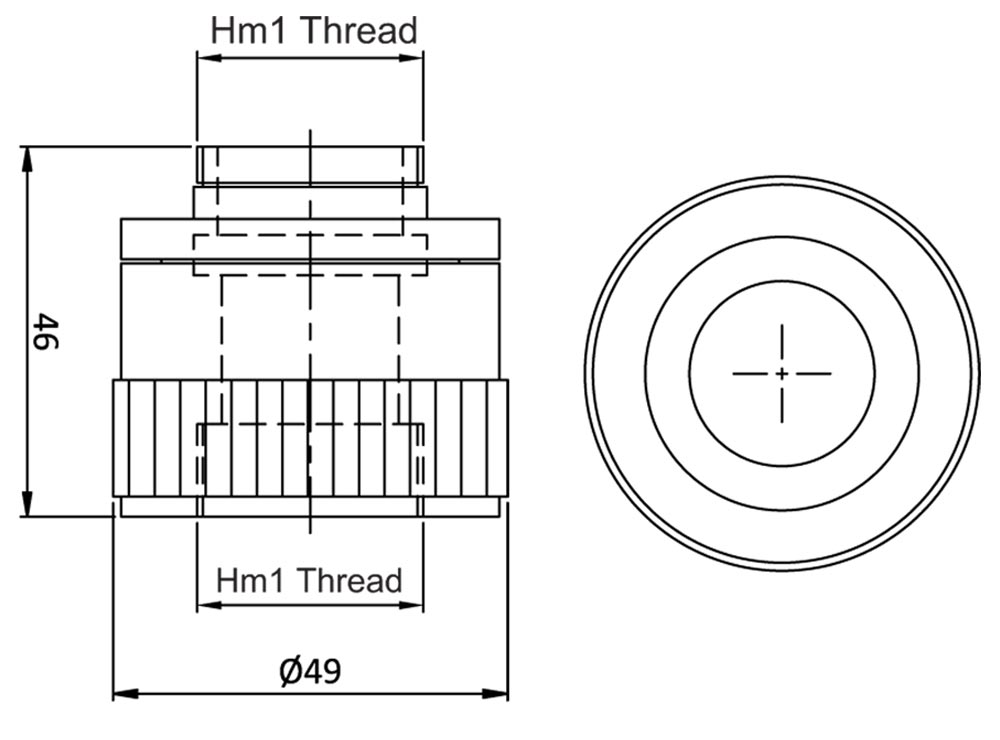

Model No Optic dia ( mm ) Suitable mounts Drawing Price $
FALM - 25 25 / 1" RLM - 25 92.00
FALM - 50 50 / 2" RLM - 50 147.00





Focus Adjustable Lens Mounts FALM25

Model No. FALM – 25
$ 77.50
