Metallic Cube Beamsplitters

Cube size ranges from 10-50 mm
Beamsplitter Coating for 400 - 700 nm

Holmarc's Metallic cube beamsplitters consists of two right angle prisms cemented together. The hypotenuse of the one prism has a combination of metallic-dielectric thin film coating. These are Lowpolarizing beamsplitters; the transmission and reflection for S - and P - polarization components are within ±10%. The cube faces of our beamsplitters have anti-reflection coatings for getting maximum transmittance. Beamsplitters with uncoated cube faces are also available. Custom sizes, coatings and split ratios are available as well.



    Material :     BK7 or equivalent
    Clear aperture :     90%
    Surface quality :     40 - 20 ( scratch-dig )
    Dimensional Tolerance :     +0.0, -0.2 nm
    Surface flatness :     λ / 4 @ 632.8 nm
    Angle folerance :     ± 5 arc min
    Coating :     Hypotenuse :- metallic + dielectric
    cube faces :
    1.    Uncoated
    2.    Single layer MgF2
    3.    Broadband AR, Ravg < 0.5% ( 400 -700 nm )

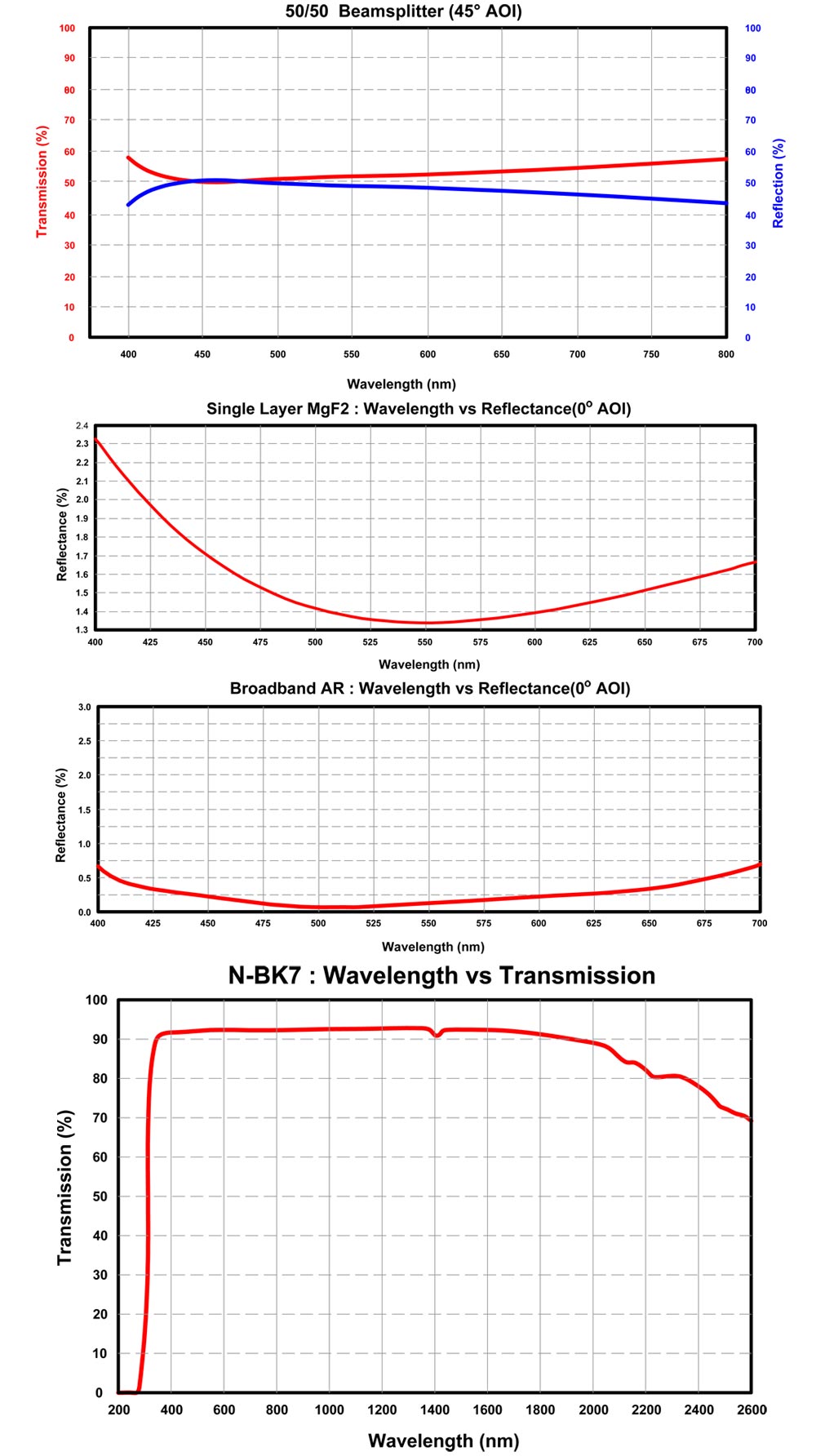

    Split ratio ( R% / T% ) :     50 / 50 ± 10%
    Absorption :     < 10%
    Polarization :     < 10%










Plate Beamsplitters

Plate beamsplitters find applications in splitting or re-combining a light beam. The front surface of our beamsplitter is coated with metallic...



Variable Beamsplitters

Our Circular Variable Beamsplitters (Mounted ) find applications in splitting an incident beam into a transmitted and a reflected beam.



Beam Samplers

Beam Samplers are used to pick off the sample of a light beam by using the Fresnel reflection from uncoated surfaces. Beam samplers are used for monitoring...



Model No. Cube size
(mm)
Wavelength
( mm )
Uncoated Single Layer MgF2 Broadband AR
HO-MCBS-10 HO-MCBS-C-10 HO-MCBS-B-10 10 400 - 700
HO-MCBS-15 HO-MCBS-C-15 HO-MCBS-B-15 15 400 - 700
HO-MCBS-20 HO-MCBS-C-20 HO-MCBS-B-20 20 400 - 700
HO-MCBS-25 HO-MCBS-C-25 HO-MCBS-B-25 25 400 - 700
HO-MCBS-50 HO-MCBS-C-50 HO-MCBS-B-50 50 400 - 700
    Note: Low-polarizing beamsplitters for custom wavelength regions are available.
Price List

Uncoated Price ($) Single Layer MgF2 Price ($) Broadband AR Price ($)
HO-MCBS-10 115.00 HO-MCBS-C-10 128.00 HO-MCBS-B-10 141.00
HO-MCBS-15 128.00 HO-MCBS-C-15 140.00 HO-MCBS-B-15 153.00
HO-MCBS-20 148.00 HO-MCBS-C-20 161.00 HO-MCBS-B-20 174.00
HO-MCBS-25 163.00 HO-MCBS-C-25 175.00 HO-MCBS-B-25 188.00
HO-MCBS-50 304.00 HO-MCBS-C-50 317.00 HO-MCBS-B-50 329.00
