Condensers

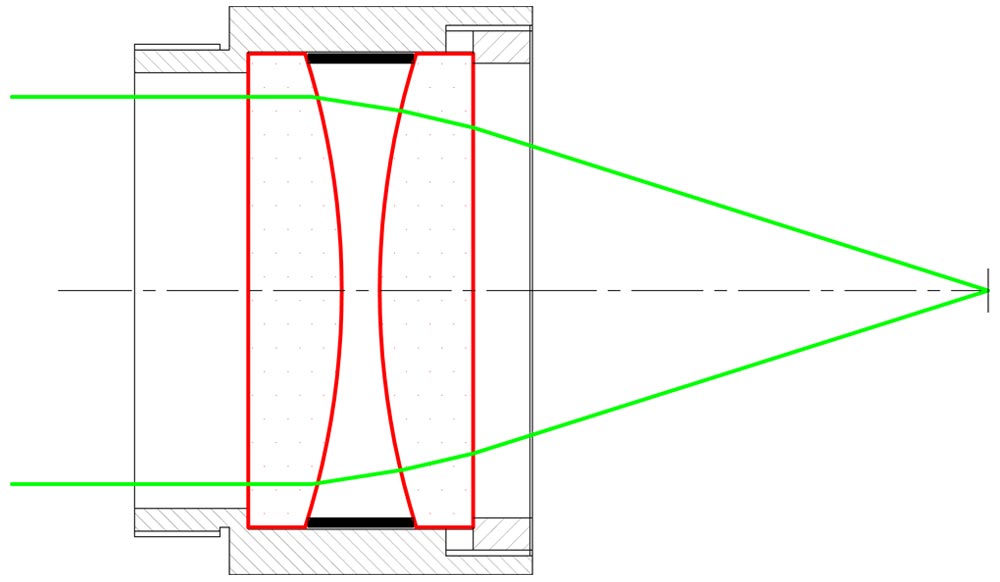

Two element air spaced design
Ideal for projection illuminator

Condenser is a combination of lenses with short focal lengths used for concentrating a light source onto a small area. The lenses are mounted in a black anodized aluminium casing. Condensers with custom sizes and focal lengths are available.

Condenser Lenses concentrate light into a projected beam. They are usually mounted in pairs in projectors, enlargers, spotlights and photo cell systems. We make condenser systems of different focal lengths and apertures.

    Two element air spaced design
    Ideal for projection illuminator
    Black anodized aluminium as housing material
    User specified AR coating
    Various type of mounting options






Model No. Diameter ( mm ) Focal Length ( mm ) Price ($)
HO - CS25 - 0.8 25 20 51.00
HO - CS25 - 1.6 25 40 51.00
HO - CS25 - 2.4 25 60 51.00
HO - CS50 - 0.6 50 30 69.00
HO - CS50 - 0.8 50 40 69.00

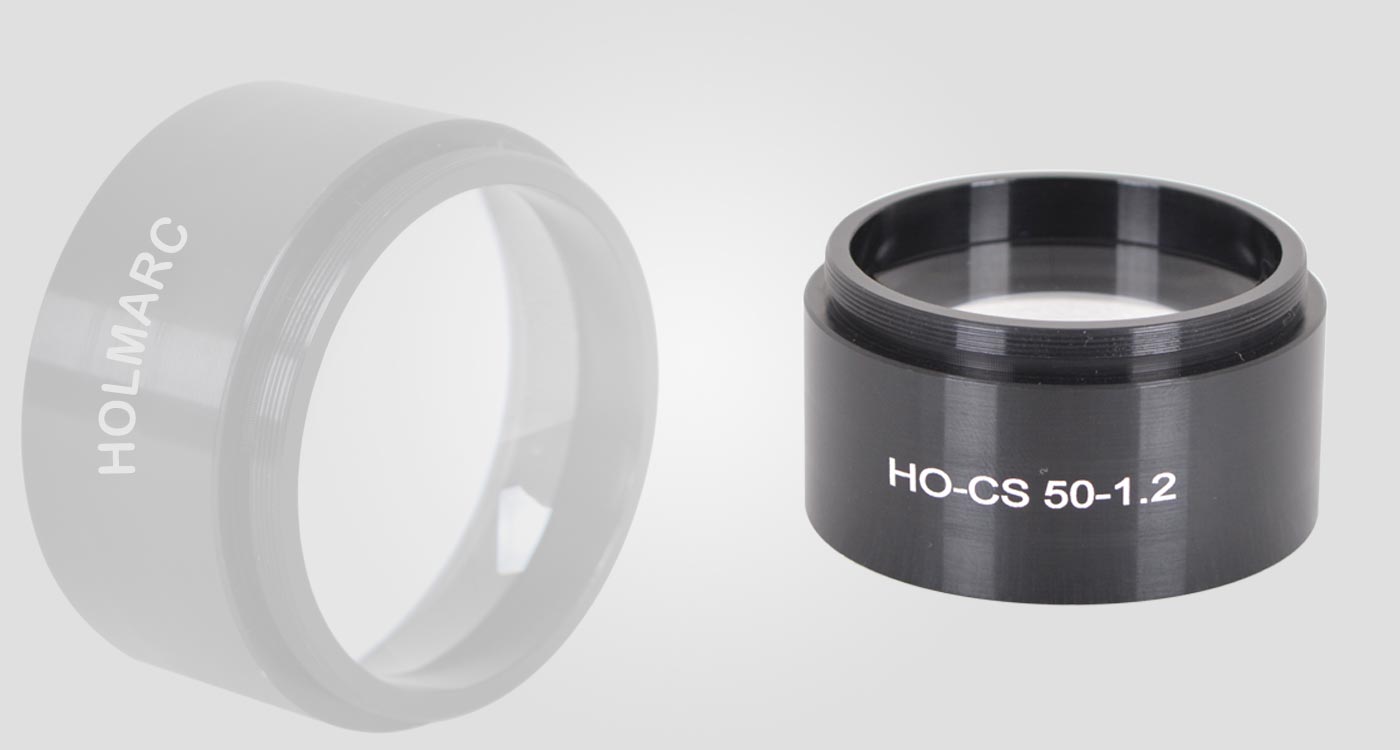

HO - CS50 - 1.2 50 60 69.00
