Tube Lens - Infinity corrected

Model No: HO-TBL-200

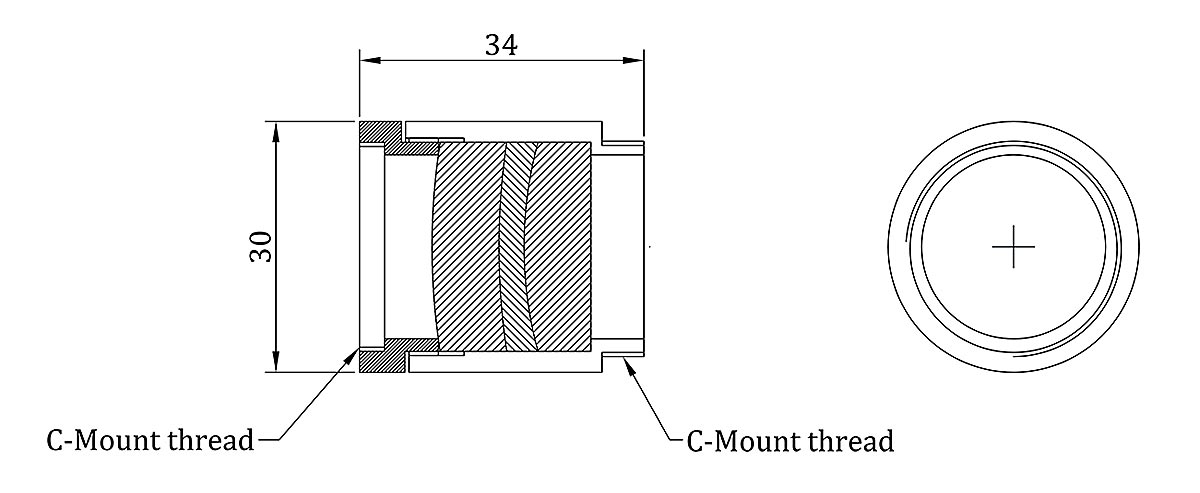

Holmarc’s HO-TBL-200 has 200 mm focal length and is designed use with infinity corrected microscope objectives. These objectives are compatible for all type of Nikon and Leica microscopes. Internal and external C-mount threading are provided for mounting. Broadband AR coating provided for high transmission @ 400 - 700 nm.

    Focal length :     200 mm
    Clear aperture :     22 mm
    Design :     Triplet design
    Coating :     Broadband AR coated
    Wavelength :     400 - 700 nm
    Field size at image place :     Φ 20 mm
    Working distance :     178 mm
    Thread :     C-mount thread
